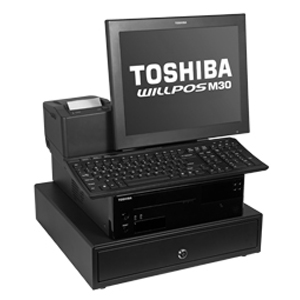

| WILLPOS M30 | ||
|---|---|---|
| CPU | Intel Sandybridge Core i5-2400 (3.10GHz, 6Mb cache, 4 cores) | |
| Intel Sandybridge Core i3-2400 (3.30GHz, 3Mb cache, 2 cores) | ||
| Intel Pentium Dual Core G850 (2.90GHz, 3Mb cache, 2 cores) | ||
| Intel Celeron Dual Core G540 (2.50GHz, 2Mb cache, 2 cores) | ||
| Chipset | Sandybridge Q67 Express | |
| Memory | 2GB as standard (max. 16GB) dual channel DDR3 1066/1333 SDRAM | |
| HDD | HDD 250GB x 1 (max. 2 drives), SATA I/F (SSD option) | |
| RAID | RAID 1 supported, software RAID 0/1 | |
| CD/DVD Drive | Integrated (option) | |
| RS232C | 4 (2 x male + 2 x female) with 5V/12V or non-powered by jumper switch 1 option with 5V/12V or non-powered by jumper switch  |
        |
| Normal USB | 6 (2 x front, 4 x rear) | |
| Powered USB | 12V x 1 (rear), 24V x 1 (rear) | |
| PS/2 | Mouse x 1 (rear), keyboard x 1 (rear) | |
| Drawer Port | 2 (Toshiba I/F + 1) | |
| Parallel | 1 (rear) | |
| Display I/F | 1 (rear) D-sub 15pin female, 1 (rear) DVI-D | |
| LAN | 10/100/1000 BASE-TX x 2, wake-on-LAN | |
| Audio | Line-out x 1 (rear), line-in x 1 (rear), mic-in x 2(front / rear), headphone x 1 (front) | |
| Speaker | Sound (internal), beep (internal) | |
| Expansion Slots | 2 (PCIe x4 /16) *in case of COM5 installed, PCIe x16 free | |
| OS | Windows 7 Professional 32bit / 64bit, Windows XP Professional 32bit, Windows Embedded POSReady 2009, Windows Embedded POSReady 7, WEPOS Version 1.1, Windows 2008 Server, SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Server  |
        |
| Cabinet Colour | FW2 (Fair White2), Black | |
| Weight | 7.2kg | |
| Dimensions | 325(W) x 400(D) x 100(H) mm | |
