Mobile Hybrid Hardware (applies to all models except where individual models are specified) |
|
Processor |
Intel Celeron ULV 847 : 21X Models |
Solid State Drive (Standard) |
mSATA 128 GB SSD |
System memory |
2 GB DDR3 1600 MHz : 21X Models |
Display |
29.5cm (11.6″) Toshiba TruBrite IPS FullHD High Brightness touch display with Wide View Angle, 16 : 9 aspect ratio, LED backlighting, hardened IOX glass, Anti Fingerprint and Anti Reflective Coating, Internal resolution : 1,920 x 1,080 |
Graphics |
Intel HD Graphics 4000 |
Interfaces |
(1) USB 3.0 (full Size), (1) built-in microphone (with Echo and Noise Cancellation), (1) external Headphone (stereo)/Microphone combo socket, (2) integrated 3.0 MP web camera with auto focus (rear), and integrated 1.0 MP web camera with Ambient Light Sensor (front) |
Wireless Communication |
Bluetooth : All Models : Bluetooth 4.0 devices (or lower) supported Wifi : 802.11 |
Integrated Magnetic Stripe Reader (option) |
3 Track MSR option available on all Models |
Battery |
Technology: 6 cell, Lithium-ion (prismatic) |
Operating System |
|
Preload and technical support |
All models come preloaded with Windows 8.1 Professional and license rights to downgrade to Windows 7 Professional. |
Optional Mounts / Features |
|
Dock with Adapter |
Ethernet port, plus (7) USB 2.0 ports (full size): (1) 24 V, (2) 12V, and (4) 5V Standard PC |

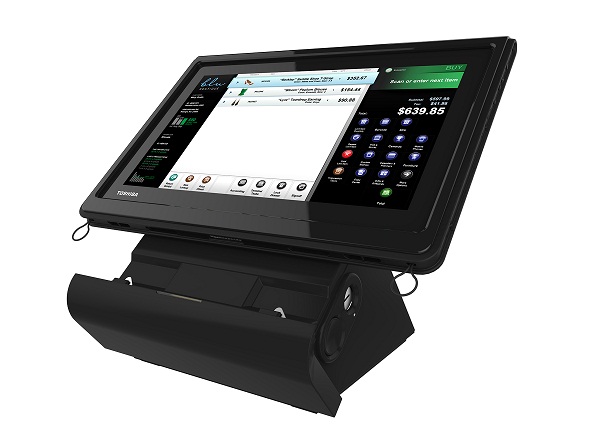

Low Profile Dock |
Ethernet port, plus (1) USB 2.0 port : 5V Standard PC |
Distributed POS Hub |
Cash drawer port (24V), plus (5) USB 2.0 ports (full size): (1) 24V, and (4) 12V |
Low Profile Dock Stand |
Enables additional configurations when used with Low Profile Dock |
Wall Bracket |
Used with to mount Low Profile Dock Stand on a vertical surface |
Shoulder Strap |
Attaches to any (2) of the four mounting loops standard on all TCxFlight models |
Hand Strap |
Attaches to the upper and lower loops for RH or LH use. Or two straps may be used for both. |
Security |
All models can be secured when docked using a mechanical key. Dock can be secured to any surface via attach holes in base plate, or via Kensington keylock. All dock cables are protected. |
Security |
All models can be secured when docked using mechanical key. Dock can be secured to stand via attach holes in base, or via Kensington keylock. All cables protected via rear cover which cannot be removed when model is locked. |
Services |
|
Limited warranty |
1 year (all models), Depot (xxD Models) and Advanced Exchange (xxA Models) |
