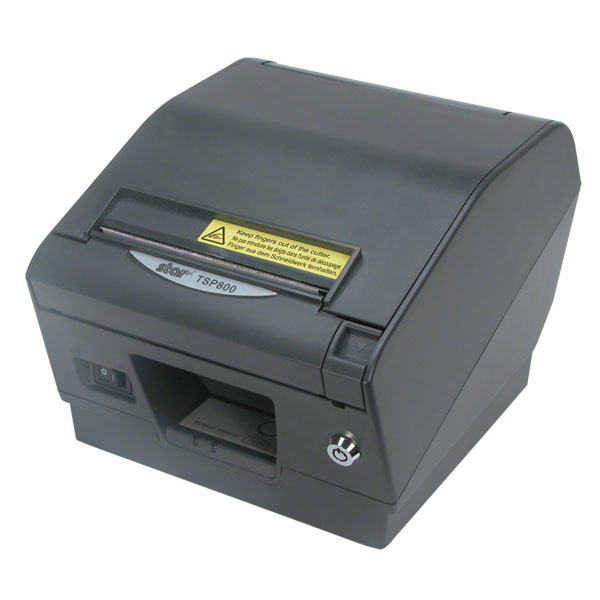

SPECIFICATIONS TSP800IIRx |
|
Printer Method |
Direct Line Thermal |
Print Speed |
37 Prescriptions Per Minute (180 mm/sec) |
Printer Case Color |
Available only in Gray |
Models Available |
TSP847Rx Includes Both Tear Bar and Auto Cutter with Locking Mechanism |
Print Resolution |
203 (8 dots per mm) |
No. of Columns |
104mm Max with A4 Reduction Facility |
Font Size |
12 x 24 |
Character Matrix |
ANK, 12 x 24, IBM Graphic 12 x 32 |
Character Set |
ANK 95, 32 Int 128 Graphic |
Code Pages / Character Table |
40 Code Pages, Katakana, IBM |
Bar Codes |
9 versions |
Line Spacing |
3 mm or 4 mm or programmable |
Paper Specifications |
|
Top Margin |
15 mm minimum default |
External Paper Feed Support |
Yes |
Auto Cutter |
Guillotine (Full or Partial Cut Selectable) |
Cover Open Sensor |
Yes |
Flash ROM / SRAM |
2 x 8 MBbit plus 2 x 1 Mbit Statis RAM |
Multiple Copy Support |
N/A |
Journal Capability |
N/A |
Label Support |
Yes; Black timing marks between labels required |
Power Supply |
External; Required PS60A External Power Supply Included |
Drivers Available |
Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS, Android and Blackberry and Scalable Raster Driver |
Digitally Signed (WHQL) |
N/A |
Swappable Interfaces |
Yes |
Connectivity |
Apple MFi Certified Bluetooth, Serial, Parallel, USB and Ethernet |
Emulation Modes |
Star Mode, DP8340 Mode, ESC/POS™ |
Peripheral Drive Circuit |
2 circuits, (24V max. 1A), 1 Compulsion input |
Power Consumption |
Average 1.8 Amp. Printing, 0.1 Amp. Standby |
Operating Conditions |
Temperature: 5ºC to 45ºC |
Storage Conditions |
Temperature: -20ºC to 60ºC |
Dimensions |
180 x 148 x 213 (w x h x d)mm |
Safety Standards |
UL, C-UL, TüV, CB, FCC, VCCI, EN55022, CE |
Reliability MCBF |
37 Million Lines |
Included with Printer |
User Manual, Sample VOID Prescription Roll PS60A External Power Supply, Keys, Ferrite Core |
Warranty |
3 Year Limited Manufacturer Warranty (US and Canada) |
Options |
Vertical Stand (VS-T800) |
