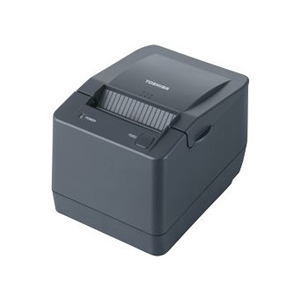

Model | TRST-A00 |
Printing | Direct thermal Two colour printing |
Print speed | Max. 170 mm/s |
Paper width | 80 mm (72 mm printable width) 58 mm (54 mm printable width) |
Roll | Max. 80mm |
Resolution | 203.2 x 203.2 dpi (8 dots/mm) |
Character size | 13 x 28 dots (standard) or 10 x 28 dots (compressed) |
Printable area | 80 mm paper: 42 characters (standard) 56 characters (compressed); graphics max. 560 dot wide 58mm paper: 32 characters (standard), 42 (compressed); graphics max. 424dots wide |
Character size | PC437, PC850, PC852, PC857; PC858, PC860, PC863, PC865, PC866,PC949, PC1252, PC1253, PC1253 |
Barcodes | UPC-A, UPC-E, JAN13 (EAN), JAN8 (EAN), Code 39, Code 128, Interleaved 2 of 5, Codebar (NW-7), PDF417, Code 93 |
Interfaces | USB 2.0 & RS-232C, POS drawer, power supply |
Power consumption | Fast mode: 75 W max. Energy saving mode: 55 W max. |
Reliability | MCBF: 52 million lines per thermal head MTBF main PC board: 600,000 hrs |
Colour | Cool black |
Other features | Drop-in paper loading; paper exhaust/near end sensor and indicator (limit is adjustable by user); partial cut autocutter; 58 mm paper guide; cover release system (on A10 model only) |
Operating temperature | 5 - 500C |
Dimensions W x D x H |
145.5 x 185.5 x 141 mm |
Weight | 1.4 kg |
