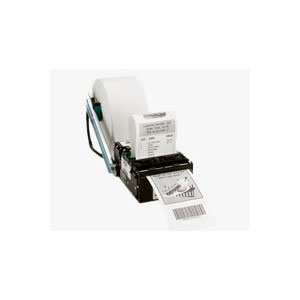

Máy In Hóa Đơn Zebra KR403 Kiosk

Mã sp: KR403
Nhãn hiệu: Zebra
Máy in Kiosk Zebra KR403 Kiosk giảm chi phí làm tăng sự hài lòng phục vụ cho khách hàng, dùng cho môi trường tự động thường xuyên, in chất lượng cao, in biên lai rõ ràng.
Giá bán: Call

Decrease costs and raise customer satisfaction with a receipt kiosk printer designed for frequent-use self-service environments:Print high-quality, legible receipts.

  • Print brand-boosting complex graphics, fonts and barcodes.
  • Worry less with advanced warning signals.

More Standard Features

  • Retract and retain function
  • Guillotine cutter
  • Auto media loading
  • Flexible media mounting
  • Horizontal and vertical mounting capability

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Print width

  • 2.3" /58 mm
  • 2.4" /60 mm
  • 3.1" /80 mm
  • 3.3" /82.5 mm

Print length: 2.75" (70 mm) to 23.6" (600 mm)
Print speed: 6" (152 mm)/sec


Media Characteristics

Maximum roll diameter: 9.8" (250 mm)
Core diameter: 1" (25 mm)
Media thickness: 0.002" (0.054 mm) to 0.004" (.11 mm)
Media types: Roll or fanfold


Operating Characteristics

Operating temperature DT: Operating temperature: 14° F (-10° C) to 122° F (50° C)
Direct thermal Storage temperatures: 14° F (-10° C) to 122° F (50° C)
Operating humidity: 10-95% non-condensing R.H.
Electrical: 24 VDC, ± 5%, average 2 A when printing


Physical Characteristics

Width: 4.2" (107 mm)
Height: 2.7" (68 mm)
Depth: 5.7" (144 mm)
Weight: 2.4 lbs (1.1 kg)


Kiosk Characterstics

Max/Min Receipt Width: 3.3" (82.5 mm)/2.3" (58 mm)


Related Products

Communication and Interface Capabilities

  • Serial RS-232 and USB 1.1 (2.0 compatible)
  • 10/100 Ethernet (option)
  • Windows XP, Vista, 7, Server 2003, OPOS and Linux

Programming Languages

Core programming languages: ZPL


Bar Codes/Symbologies

Linear Code 128
Codabar
Code 11
Code 128 with subsets A/B/C
Code 39
Code 93
EAN-13
EAN-18
EAN-8
EAN-8 and EAN-13 with 2 or 5 digit extensions
MSI
MSI-3
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UCC/EAN-128
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MacroPDF417
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics

  • Supports user-defined fonts and graphics
  • 16 resident expandable ZPL II bitmap fonts, one resident scalable ZPL II font
