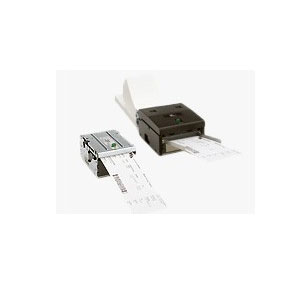

Máy In Hóa Đơn Zebra TTP 2100 Kiosk

Mã sp: TTP 2100
Nhãn hiệu: Zebra
Máy in kiosk Zebra TTP 2100 Kiosk in ra số lượng lớn ATB1, thẻ lên máy bay, thẻ túi xách, vé và nhiều hơn nữa.
Giá bán: Call

Make doing business more enjoyable for your customers with kiosk printers that print high volumes of ATB1 boarding passes, bag tags, tickets and more.

  • Reduce the wait time with self-service convenience.
  • Low-maintenance kiosk printers ensure less downtime.

More Standard Features

  • Media sensors - out-of-paper, paper in Presenter, top of form selectable for reflective settings, input for external paper-low sensor
  • Prints ATB1 boarding passes, bag tags, and tickets

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Print width

  • 2.1" (54 mm) for credit card size
  • 3.3" (82.5mm) for ATB1 size media

Print length: 23.6" (600 mm)
Print speed: 5.9" (150 mm)/sec


Media Characteristics

Maximum roll diameter: 9.8" (250 mm)
Core diameter: 3.0" (76 mm)
Media thickness: 0.004" (0.11 mm) to 0.01" (0.26 mm) for 2.1" (54 mm) paper
Media types: Roll or fanfold


Operating Characteristics

Operating temperature DT: Operating temperature: 32° F (0° C) to 122° F (50° C)
Direct thermal Storage temperatures: 14° F (-10° C) to 122° F (50° C)
Operating humidity: 35-75% non-condensing R.H.
Storage humidity: 10-90% non-condensing excluding paper
Electrical: 24Vdc +/- 5% average 2A, peak 6A


Physical Characteristics

Width Embedded: 4.2" (107 mm) - Desktop: 4.5" (117 mm)
Height Embedded: 2.8" - Desktop: 3.1" (Embedded: 71 mm - Desktop: 85 mm)

Depth Embedded: 5.0" - Desktop: 7.1" (Embedded: 127 mm - Desktop: 137 mm)
Weight Embedded: 2.6 lbs - Desktop: 3.1 lbs (Embedded: 1.2 kg - Desktop: 1.4 kg)




Related Products

Options

  • Print guides for 51, 54, 60, 66, 80 and 82.5 mm media
  • Leaf spring retainer for quick fit hubs
  • Media holder (includes quick fit hubs and spring)
  • Paper-low sensor with 300 mm cable
  • Output tray

Communication and Interface Capabilities

  • Serial RS232
  • Windows 2000, XP, Server 2003, OPOS

Bar Codes/Symbologies

Linear EAN-8
EAN-13
UCC/EAN-128
UPC
Interleaved 2-of-5
ISBN
Code 39
Code 128
2-D PDF 417
Fonts and Graphics: Any font or graphic supported by the operating system
