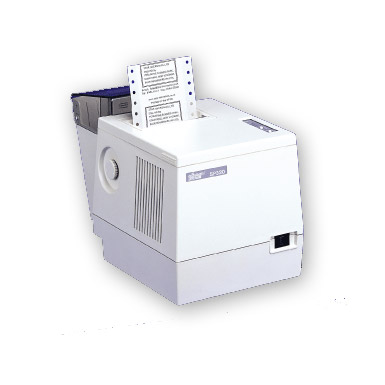

Máy in hóa đơn nhỏ sử dụng đối với loại giấy 3.5 inch. Máy in lí tưởng cho các ứng dụng chẳng hạn như thiết bị Credit Authorization Terminal và in các mẫu đã được in sẵn nói chung.
| Models | SP322S |
| Printer Method | 9-pin serial impact dot matrix |
| Print direction | Bi-directional |
| Number of columns | 40 (15CPI) |
| Character font | 5 x 9 7 x 9 |
| line spacing | 1/6" n/72" |
| Character size | 15, 12, 8, 6 CPI |
| Print speed | 3.2 lines / sec. |
| Print feed speed | Approx. 3 inches / sec. |
| Ribbon cassette | RC300B (black) : 1.6 million |
| Paper: Media Material Width Diameter Thickness Copies |
Sprocket fanfold Normal or carbonless paper 3.5" (89mm) 0.07mm to 0.010mm - single copy Three ply - Max 0.2mm Each paper should be 0.05mm to 0.08mm in thickness |
| Reliability: MCBF Print head |
8 million lines 200 million lines |
| Operating conditions | 0°C to 50°C, 10% to 90% RH (W/O condensation) |
| Storage conditions | -20°C to 70°C, 5% to 95% RH (W/O condensation) |
| Power supply | AC 100, 120, 220, 240V |
| Current Consumption | Max 60W (AVG 30W) in operation, 10W in idle |
| Paper Out Detector | Mechanical switch |
| Cash drawer driver | 2 circuits (24V,max 1A), one compulsion input |
| Data buffer | Approx 4KB (selectable by DIP switch) |
| Interface | Serial (RS232C) or Parallel (RS422A or 20mA current loop option) |
| Dimensions (mm) | 175 (W) X 303 (D) X 196 (H) (with paper holder) |
| Weight | Approx. 3.9Kg |
