Standard Features
• Direct thermal printing of barcodes, text and graphics
• 203 dpi/8 dots per mm resolution
• Print speed: Up to 4"/102 mm per second
• CPCL and ZPL® programming languages
• Resident fixed and scalable fonts
• 400MHz 32-bit ARM® processor with 128 MBRAM memory
• 128 MB Flash memory supports download ableprograms, receipt formats, fonts, and graphics
• USB port
• 1.6Ahr Li-Ion battery
• Built-in battery charger
• Optical out-of-media sensing using fixed center-position sensor
• Tear bar for easy receipt dispensing
• Supports vertical and horizontal printing
• Printer can be used in any orientation
• Fixed media-roll width
• Clamshell design for easy media loading
• Printer Management: Mirror, SNMP, Web server (with customizable HTML pages), Wavelink Avalanche® [Future firmware update]
• Four LEDs as user interface indicators
• 4'/1.2 m drop to concrete (multiple times)
• Label odometer
• Bluetooth 2.1
• Security modes 1–4
• Bluetooth printing from Apple devices (iOS5, iOS6)
• IP42-rated for dust and water resistance (IP54 with durability-enhancing case)
• Print Touch via NFC–One touch to pair and print via Bluetooth
Printer Specifications
Resolution: 203 dpi/8 dots per mm
Memory: 128 MB RAM; 128 MB Flash (standard)
Print width
• iMZ220: 1.9"/48.3 mm
• iMZ320: 2.9"/73.7 mm
Print length
Maximum: Continuous
Print speed: Up to 4"/102 mm per second

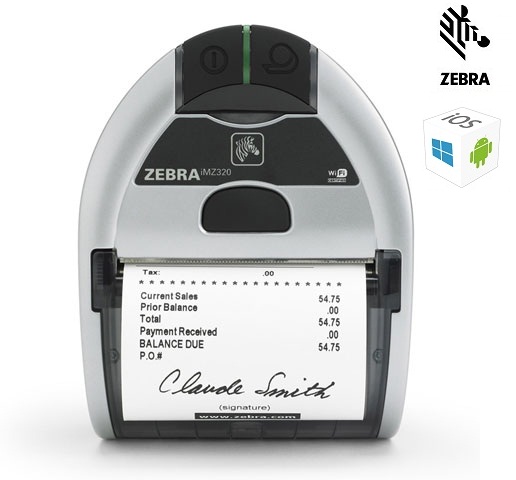

Physical Characteristics: iMZ220 iMZ320
Width: 3.18"/80.77 mm 4.11"/104.4 mm
Height: 5.34"/135.6 mm 5.34"/135.6 mm
Depth: 2.26"/57.4 mm 2.26"/57.4 mm
Weight: 0.70 lbs/0.32 kg 0.75 lbs/0.34 kg with battery with battery
Operating Characteristics
Environment
• Operating temperature: 14º F/-10º C to 122º F/50º C
• Storage environment: -4º F/-20º C to 140º F/60º C
• Operating humidity: 10–90% non-condensing
Agency approvals
FCC Part 15 and EN 55022 Class B limits; FCC, IC, and European Standards for Bluetooth and 802.11a/b/g/n; TÜV and IEC 60950 standard for Safety; NOM, C-Tick, VCCI, S-Mark, PSE, CCC, MII Bluetooth SIG-registered, CCX and Wi-Fi certified
Communication and Interface Capabilities
• 802.11a/b/g/n wireless LAN with support for:
– WEP, TKIP, and AES encryption (802.1x )
– EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
– 802.11i (WPA2), 802.11d, 802.11h
– 802.11n (optional): Wi-Fi (802.11n)-certified,
Cisco CCX v4 ASD-certified
• USB 2.0
• Bluetooth 2.1 (includes Bluetooth support for iOS devices)
• Windows compatibility: (CE .NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows printer driver and/or our Mobile SDK controls and other applications)
• Android 2.3, 4.0, 4.1
• iOS 5, iOS 6
• Dual radio—802.11a/b/g/n & Bluetooth 3.0 (coming soon)
Media Characteristics
Max. roll size
1.88"/47.8 mm O.D. on a 0.4"/10.2 mm to 0.75"/19 mm I.D. core
Max. media width (iMZ220): 2.0" (± 0.03")/50.8 mm (± 0.76 mm)
Max. media width (iMZ320): 3.0" (± 0.03")/76.2 mm (± 0.76 mm)
Thickness: 2 mil/0.0508 mm to 4 mil/0.1016 mm
Media types
Direct thermal receipt paper, or UV-coated media.
For optimum print quality and printer performance,
use genuine Zebra supplies.
Fonts/Graphics/Symbologies
Fonts and character sets
• Standard fonts: 25 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed)
• Optional fonts: Downloadable bitmapped and scalable fonts
• International character sets/code pages supported: USA, Germany, France, Sweden, Spain, Norway, Italy, CP850, UK, (Latin 9), Chinese GB18030, BIG 5 (Traditional), Japanese and Korean supported in 16 x 16 and 24 x 24. Thai and others upon request.
Graphics
Supports user-defined fonts and graphics—includingcustom logos
Barcode symbologies
• Barcode ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
• Linear barcodes: Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13, 2 and 5 digit add-on, Interleaved 2-of-5, UCC/EAN 128, UPC-A, UPC-E, 2 and 5 digit add-on
• Two-dimensional: Aztec Code, Data Matrix, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39
Options and Accessories
• Bluetooth 2.1
• 802.11a/b/g/n
• Protective silicone skin
• Durability-enhancing case (IP54 rating when using the case)
• Shoulder strap
• iMZ series 4-bay power station
• Vehicle adapter
Optional features
• Linerless printing (with silicone platen roller only) through a Development Services Group request
• ZBI 2.x: Powerful programming language that lets printers run standalone applications, connect to peripherals, and much more ZebraLink™ Solutions
• Print Touch via NFC
• Profile Manager via NFC with AirWatch connector
• Link-OS Software Development Kit
• ZebraDesigner™ Pro
• ZebraDesigner
• ZebraNet™ Bridge Enterprise
• ZebraDesigner driver
• Zebra Setup Utility
• ZBI-Developer™
