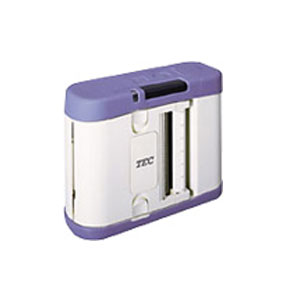

Dựa trên phiên bản tiền nhiệm rất thành công của các máy in di động Toshiba B-211, được sử dụng trong các ứng dụng di động lớn trên toàn thế giới, Toshiba B-SP2D là hoàn toàn tương thích với các phần mềm B-211 và nguồn cung cấp.
Printing | |
---|---|
Technology | Direct thermal |
Issue mode | Batch / Peel-off |
Resolution | 8 dots/mm (203 dpi) |
Print Width | up to 48 mm |
Print Speed | up to 80 mm/sec |
Format | |
Character Types | Alphanumeric, symbols and special characters |
Bit Map Fonts Standard characters, Bold characters, Writable characters, Price Font1, Price Font2, Letter Gothic, Presentation, Helvetica Medium, Helvetica bold, Helvetica Italic, Times New Roman Medium, Times New Roman Bold, Times New Roman Italic, Prestige Elite Medium, Prestige Elite Bold, Courier Medium, Courier Bold, OCR-A, OCR-B, GOTHIC725 Black Outline Fonts TEC font1, TEC font1 (Proportional) | |
Barcode Type | NW7, EAN 8, EAN 13, JAN 8, JAN 13, UPC-A, UPC-E, CODE 39, Interleaved 2 of 5, EAN128, CODE128, MSI, Customer Bar Code |
2D Codes | QR Code, PDF417, Data Matrix, Maxicode, Micro PDF417 |
Graphic / Logo | Label mode 48 (W) x 90 (H) mm size x 2 areas (Max: 64KB) TPCL-LE mode 48 (W) x 90 (H) mm size can be stored, (Max: 224 areas and 64KB) |
Print Orientation | 0°, 90°, 180° and 270° for characters and barcodes |
Paper | |
Paper Type | Labels, receipts |
Paper Width | Label: 25 to 55 mm - Receipt: 28 to 58 mm |
Effective Print Width | Label & Receipt: up to 48 mm |
Paper Length | Label Batch Mode: 7 to 160 mm Peel-off Mode: 10 to 60 mm Continuous Receipt Paper 7 to 500 mm |
Interface | Serial and IrDA: B-SP2D-GH20-QM-R Bluetooth and IrDA: B-SP2D-GH30-QM-R Wireless LAN and IrDA: B-SP2D-GH40-QM-R |
Physical | |
Size | GH20 and GH30 model : 114 (W) x 91 (H) x 44 (D) mm GH40 model : 114 (W) x 101 (H) x 44 (D) mm |
Weight | GH20 and GH30 model : 380 g (incl. battery, excl. paper roll) GH40 model : 410 g (incl. battery, excl. paper roll) |
Environmental | |
Operating Temperatures | GH20 and GH30 model : from -5 °C to 40 °C GH40 model : from 0 °C to 40 °C |
Relative Humidity | 25 to 85% (non-condensing relative humidity) |
Power Supply | Lithium ion battery: 7.4V, 1400mAh (Nominal value) |
Options | Battery, Battery Charger |
