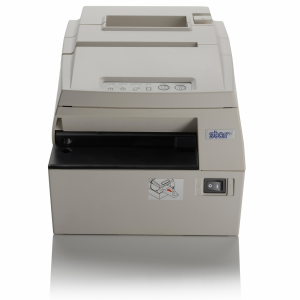

SPECIFICATIONS – HSP7743 | |
Thermal Receipt Station | |
Print Method | Direct Line Thermal |
Print Speed | 250 mm/sec |
Model Available | Auto Cutter Only |
Print Resolution | 203 x 203 dpi / 203 x 406 dpi Selectable |
Two Color Print Capability | Red & Black / Blue & Black / Green & Black (Two color thermal paper required) |
Bar Codes | Supported |
Paper Specifications Width Thickness Roll Diameter Easy-Load Paper Out Sensor Paper Low Sensor Print Width | 80 mm standard; 76 mm, 58mm adjustable 0.065 – 0.085 mm Up to 83 mm "Drop-In & Print" Standard Standard 80 mm paper = 72 mm; 76 mm paper = 68 mm; 58 mm paper = 50.8 mm |
Auto Cutter | Guillotine (Partial Cut Only) |
Cover Open Sensor | Yes |
Reliability MCBF Auto Cutter | 60 Million Lines 1.5 Million Cuts |
Impact Slip/Validation Station | |
Print Method | 9-Pin Bi-Directional Logic Seeking |
Reliability | 37 Million Lines |
Number of Columns | 60 / 45 |
Print Area | 85.4 mm maximum |
Paper Loading | Intelligent Front Loading; Instant Top of Form Positioning |
Multiple Copies | Original + 3 (Up to 4-Ply Paper Supported) |
Paper Size Width Length | Up to 230 mm 75 – 297 mm |
Paper Thickness 1 Ply 4 Ply | 0.09 – 0.20 mm 0.09 – 0.31 mm |
Ribbon | RC7KB |
Check Printing | Yes |
Validation | Yes (Maximum 8 Lines) |
MICR | Yes; Top or Bottom Position MICR available |
MICR Character Sets | E13B / CMC-7 |
General Specifications | |
Printer Case Color | Putty or Gray |
Dimensions Weight | 186 x 177 x 296 (w x h x d)mm 4.6 kg |
Emulation | Star Mode, ESC/POS™ |
Drivers Available | Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS, Android and Blackberry |
Digitally Signed (WHQL) | Yes |
Swappable Interfaces | Yes |
Connectivity | Serial, Parallel, USB, Powered USB, or Ethernet |
Power Supply | External; Requires PS60A External Power Supply |
Peripheral Drive Circuit | 2 circuits |
Power | 24V DC |
Safety Standards | UL, C-UL, TüV, FCC Class A, CE, CB GOST, C-tick, AS Standard, VCCI Class A, EN55022 |
Included with Printer | Installation CD with Drivers and Manuals, Set Up Sheets, Start Up Thermal Paper Roll, Ribbon Cartridge, Paper Guide, Power Switch Cover, Ferrite Core |
Warranty | 3 Year Limited Manufacturer Warranty (US and Canada) |
Options | External Power Supply (PS60A) Swappable Interfaces No MICR Version MICR Top Position MICR Bottom Position (HSP7743 Standard) Swap-A-Star Extended Warranty Program (US) Extend-A-Star Extended Warranty Program (US and Canada) |
