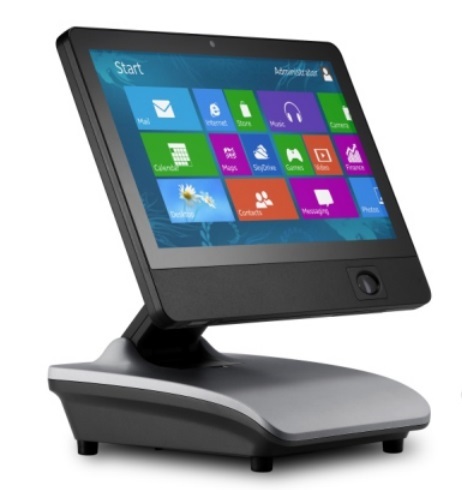

SP-3500 Series All in one POS Terminal

Code: SP-3500

Màn Hình Cảm Ứng

SP-3500 series design with sleek and elegant appearance, its available either with a compact 11.6” or 15.6” PCT (multi touch) display

Price: Call

Partner Tech is proud to announce next generation of POS terminal SP-3500 series, its powered by 4th generation Intel Bay Trail CPU, with energy efficient yet deliver performance that could secure future-proof of investment.

SP-3500 series design with sleek and elegant appearance, its available either with a compact 11.6” or 15.6” PCT (multi touch) display, plus its foldable base design which can be adjust from fully flat to fully extend, the flexibility of space freedom allows you to serve your customer just about anywhere.

SP-3500 series also come with variety choice of integrated peripherals, options including an encrypted magnetic stripe reader (MSR), fingerprint reader, IC card reader, NFC(RFID) reader, 2D scanner, camera and wireless module.

The combination of functionality and stylish design makes the SP-3500 series your smart choice of POS solution for today’s changing business environment.

Foldable design with choice of screen size 15.6” or 11.6”
Projected Capacitive Touch
Support Rich I/O
Support USB 3.0
Integrated peripherals option MSR, Fingerprint,
NFC, IC Card, 2D scanner and camera
Support Win 7 / Posready 7 /
Windows embedded 8.1 industry pro retaill
Expansion Options: 1 Mini PCIe & WLAN module

80 /100 trong số 210 lượt đánh giá

Item	SP-3511	SP-3515
Processor	Intel® Bay Trail-D J1900 2.0G up to 2.4G, 2M Cache
Memory	204pin DDR3L-1333 SO-DIMM x 2, Max Support 8GB
Display	11.6” 1366 x 768	15.6” 1366 x 768
Touch	Projected capacitive touch (Multi Touch)
LAN	10/100/1000 Gb Ethernet x 1
Storage	Internal 2.5" type SATA HDD or SSD
I/O Interface	lExternal 4 * COM ports [COM1~4 on rear I/O ( powered with DC +5/+12V),
	COM1~2 by BIOS selection; COM3~4 by Jumper selection)
	l1 * RJ11 port supports 2 cash drawer
	l1 * RJ-45 LAN port with activity and link LEDs
	l5 * USB 2.0 l1 * USB 3.0 l1 * VGA
	l1 * DC +12V input power-jack l1 * DC +12V Output
Expansion Options	1 * Mini PCI-e, Support Wireless LAN module with USB signal
Speaker	2* 3W
Optional Peripherals	lBiometric Reader or I-Button, NFC(RFID) reader l Smart Card Reader, Camera 2.0M
	l3 tracks magnetic reader(USB interface) l2D Barcode Scanner
Operation System	Window 7, POS Ready7, Window 8.1, Industry 8.1, Linux (Ubuntu)
Power Supply	AC100~240V/DC+12V, 90 watt power adaptor,
Dimensions	302369298(WHD)	390401298(WHD)
Operating Temp	0°C ~ +40°C
Storage Temperature	-20°C ~ +60°C
Humidity	15%~80%
Certification	CE, FCC, LVD, VCCI, BSMI, Class A, CB, CCC
