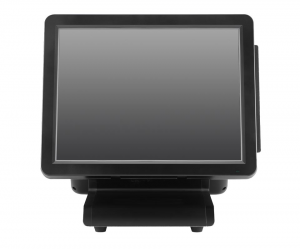

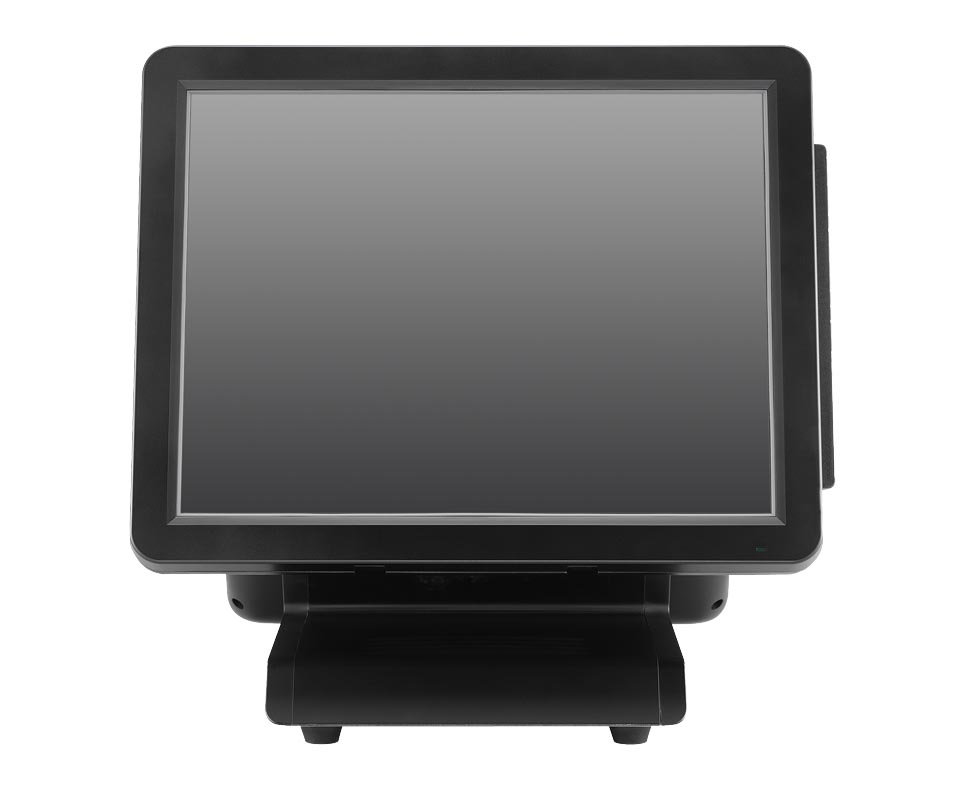

Touch Terminal SP-600 Brings power into POS

Code: SP-600

Cổng LAN Cổng USB Màn Hình Cảm Ứng RS232

The SP-600 from Partner Tech is a high performance smart POS system designed to meet the needs of today‘s increasing demand of resources and performance of POS applications. The fanless 1.86 GHz dual-core Atom processor, with up to 4GB of RAM, is embedded in an elegant touch screen unit that provides some of the most advanced and cost effective features.

Price: Call

The SP-600 from Partner Tech is a high performance smart POS system designed to meet the needs of today‘s increasing demand of resources and performance of POS applications. The fanless 1.86 GHz dual-core Atom processor, with up to 4GB of RAM, is embedded in an elegant touch screen unit that provides some of the most advanced and cost effective features.
A wide variety of modules can be connected for different applications including RFID reader, MSR, fingerprint reader, IC card reader and mini PCI-e slot. A compact form ensures that the SP-600 uses the minimum counter space. It‘s wide tilt angle and industry standard VESA mount offer highly flexible mounting options.

Features

Heavy duty die cast aluminum
Intel Atom 1.8 GHz Dual Core CPU
Spill and splash resistant
0° to 90° tilt angle
Integrated MSR
Wall mountable
IP54 rated
IP66 rated front bezel
Dual display support with power jack

SP-600

CPU

Intel®Atom™ Processor D2550
(1M L2 Cache, 1.86 GHz, Dual core)

Chipset

NM10

LCD

15“ LCD, resolution 1024 x 768
5-wire resistive touch screen

Memory

Maximum 4 GB (DDR 3)

Ethernet

Onboard 10/100/1000 BASE-T Gigabit Ethernet

Storage

Internal 2.5“ type SATA HDD x 1 in base/wall mount (option)

External I/O
Interface

3 x COM ports (COM 1~2 powered with DC+0/5/12V, BIOS selection; COM3 by jumper setting)
4 x external USB
1 x DB-15 VGA port
1 x RJ11 port supports 2 cash drawer (DC+24v)
1 x RJ-45 LAN port with activity and link LEDs
1 x DC+12v out

1 x Mini PCI-e
Audio chip on board with 1 W speaker

Expansion Options

1 x DC + 12V input power-jack

Optional
Peripherals

3 tracks magnetic reader
Customer display module (2 x 20 VFD)
Biometric reader, Smart Card reader
I-Button, RFID reader

Operation System

Windows 7, Linux (ubuntu, Fedora), POSReady 7

Power Supply

AC 100 ~240/DC 12V, External 90 W adaptor,plain base cover

Physical
Dimensions

360 mm (W) x 233 mm (D) x 323 mm (H)

Operating Temp
