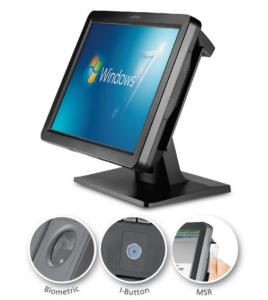

Partner Tech SP-630 POS Touch Terminal

Partner Tech SP-630 POS Touch Terminal

When demanding economical POS solution and requiring a powerful terminal for today’s ever changing POS environment, the SP-630 is the right answer in view cost efficiency and performance.

To meet those requirements, the new SP-630 is equipped with the Intel Celeron N2807 dual core CPU, which is of course fanless, to guarantee reliability and low maintenance. Memory wise, up to 4GB RAM will be supported.

The elegant body of SP-630 utilizes 5 wire resistive ELO touch technolo- gy for reliable operation at Point-of Sales. The monitor is flexible and can be adjusted to meet the requirements of any workplace – whether with convenient VESA / wall mount or wide tilt angle.

There are different possibilities to connect a customer display (VFD 2x20 chr.) or a second monitor e.g. for digital signage purposes. To round up the SP-630 Touch POS system, a wide range of helpful POS peripheral options are available.

Special Features

• Powerful Intel® Celeron N2807 dual core processor Supports up to 4GB RAM
• Flexible modular design and dual display support Spill and dust resistant front panel, IP65 Convenient VESA / wall mount and wide tilt angle monitor
• Green low power consumption

Optional

• Customer display module (2 x 20 VFD)
• 2nd monitor (CD-70, PM-116 or PM-15BZ)
• 3-track MSR, Smart Card reader, RFID reader Fingerprint sensor, I-Button/Dallas key/Addimat LPT port / Audio connector

Specification

• Intel® Celeron processor N2807 (1M Cache,1.58 GHz up to 2.16 GHz)
• 5-wire Resistive touch
• 204pin DDR3L SO-DIMM 2GB (Support up to 4GB)
• IEEE 802.3 10/100/1000 BASE-T Gigabit Ethernet
• Internal 2.5'' type SATA HDD*1
• Physical:360mm(W)*240mm(D)*365mm(H),(LCD 15 tilt angle)
• Operation System:Windows 7,POS ready 7,Windows 8.1,Windows 8.1 Industry pro,Linux (ubuntu)

Technical data Item SP-630
CPU: Intel® Celeron™ N2807, 1.58GHz up to 2.16GHz, dual core, 1MB cache, fanless
LCD :15” TFT-LCD, resolution 1024 x 768
Touch: 5 wire resistive ELO touch (PS/2 interface)
RAM: Up to 4GB (DDR3L)
LAN: Onboard 10/100/1000 BASE-T Gigabit Ethernet
Storage Internal: 2.5“ SATA HDD, SATA SSD (option)
I/O Interface

•  external 3x COM
• (DC+0/5/12V: COM 1-2 BIOS selection, COM3 by jumper)
• external 3x USB 2.0
• external 1x USB 3.0
• 1x RJ-45 Ethernet
• 1x RJ-11 Cash drawer control (for 2 cash drawers)
• 1x Mini PCI-e
• 1x ext. VGA for 2nd monitor
• 1x DC+ 12V Out

Operating System:  Windows 7, POSReady7, Windows 8.1, Linux (ubuntu)
Power Supply: AC100~240V/DC+12V, 7.5A, 90W power adaptor
Dimensions: 360mm (W) x 240mm (D) x 365mm (H)
Environment:

• Temperature:Operating  0°C ~ +40°C ;  Storage-20°C ~ +60°C
• Humidity: Operating 15% ~ 80% ; Storage15% ~ 80%

Options:
Customer display module (2 x 20 VFD), 2nd monitor (CD-70, PM-116 or PM-15BZ), 3-track MSR, Smart Card reader, RFID reader, FingerPrint sensor, I-Button/Dallas key/Addimat, LPT port / Audio connector can be provided as factory option
