Partner Tech POS Concept SP-2500 Series

Code: SP-2500
Provider: Partner Tech
Màn Hình Cảm Ứng
The SP-2500 Series from Partner Tech is a complete new POS concept - no fixed configuration. Customers select their required modules from a large variety of options and it will be configured as a “personalized” POS system.
Price: Call

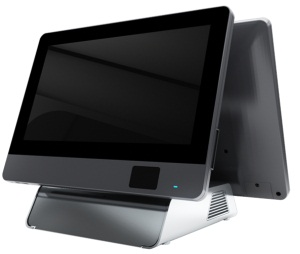

Partner Tech SP-2500 Touch POS


The SP-2500 Series from Partner Tech is a complete new POS concept - no fixed configuration. Customers select their required modules from a large variety of options and it will be configured as a “personalized” POS system. To achieve this high degree of flexibility, the final assembly will take place in Germany. Each of the modules can be combined with a wide range of peripherals to form a “compact” POS system, or to be used as stand-alone to support modular POS design. By providing an assortment of mounts and fixtures, all thinkable retail installation environments can easily be covered.

Operated with the powerful Intel® Celeron J1900 (2.00GHz-2.42GHz) processor, the SP-2500 POS Box-PC provides high performance and covers todays demands of modern POS applications. SP-2500 Series monitors, ranging from 11.6” to 18.5”, offer a wide screen format (16:9) and guarantee efficient design of information for operator and customer.

  • POS system will freely composed by modules
  • Powerful Intel® Celeron™ J1900 (2.00GHz-2.42GHz)
  • Monitor size from 11.6” up to 18.5”
  • Projected Capacitive Touch (Multi Touch) wide screen format
  • VESA standard for all modules

Optional

  • 7” TFT-LCD customer display (CD-70)
  • 3-track MSR (USB interface)
  • Smart Card/RFID/NFC reader
  • Fingerprint sensor or i-Button/Dallas key/Addimat
  • 2D barcode reader
  • Front camera 2.0M
  Item

SP-2500

SP-2511

SP-2515

SP-2518



POS PC

Touch Terminal

Touch Terminal

Touch Terminal

  Processor   Intel® Bay Trail-D J1900 2.0G up to 2.4G, 2M Cache
  Memory   204pin DDR3L-1333 SO-DIMM x 2, Max Support 8GB
  Display   N/A

  11.6"1366x768

  15.6"1366x768

  18.5"1366x768

  Touch   N/A   Projected capacitive touch (Multi Touch)
  LAN   10/100/1000 Gb Ethernet x 1
  Storage   Internal 2.5" type SATA HDD, optional 2nd HDD
  I/O Interface   External 4 * COM ports [COM1~4 on rear I/O
    ( powered with DC +5/+12V), COM1~2 by BIOS selection;
    COM3~4 by Jumper selection
    1 * RJ11 port supports 2 cash drawer
    1 * RJ-45 LAN port with activity and link LEDs
    5 * USB 2.0
    1 * USB 3.0
    1 * DC +12V input power-jack
    2 * Power USB Port (+24V x 1 / +12V x 1) Optional
    1 * DC +12V Output
    1 * Mini PCI-e, Support Wireless LAN module with USB signal
    1 * VGA Port    N/A
    Optional
    2nd VGA Port
  Speaker   N/A   1*3W
  Optional Peripherals   Biometric Reader or I-Button, RFID reader, Smart Card Reader,
    Camera 2.0M
    3 tracks magnetic reader(USB interface)
    Dual Display 11.6”, 15.6”18.5”
    2D Barcode Scanner
  Operation System   Window 7, POS Ready7, Window 8.1, Industry 8.1 , Linux (Ubuntu)
  Power Supply   AC100~240V/DC+12V, 90 watt power adaptor,
  Dimensions   TBC
  Operating Temp   0°C ~ +40°C
  Storage Temperature   -20°C ~ +60°C
  Humidity   15%~80%
  Certification   CE, FCC, LVD, VCCI, BSMI, Class A, CB, CCC
