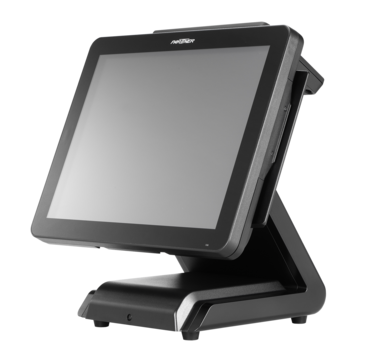

SP-1030 | |
CPU | Intel® Celeron™ G540 (2.5GHz, dual core, 2MB Intel Smart Cache), high speed smart fan |
|
Intel® i3-3220 (3.3GHz, dual core, 3MB Intel Smart Cache), high speed smart fan |
Intel® i5-3550S (3.7GHz, dual core, 3MB Intel Smart Cache), high speed smart fan | |
Chip Set | Intel B75 |
Memory |
204pin DDR3 SO-DIMM, 2 slots up to 16GB RAM |
Storage |
1x 2.5” SATA HDD or SSD, 2nd HDD / SSD is option |
I/O’s COM Ports Extensions |
4x external COM; (COM 1~2 DC+0/5/12V BIOS selection, COM 3~4 DC+0/5/12V jumper selection) 4x external USB 2.0 2x external USB 3.0 1x RJ-45 Ethernet (LED) 1x RJ11 port (supports 2 cash drawer, 24V) 1x DB-15 VGA port for 2nd monitor 1x Mini PCI-e 12V DC Out Audio (Line-In, Line-Out) |
Powered USB (option) |
1x 12V, 1x 24V (replaces COM4) |
Storage |
Internal 2.5“ SATA HDD, supports 2nd HDD (option) SATA SSD (option) |
Ethernet |
IEEE 802.3 10/1000/1000 BASE-T Gigabit Powered USB (1 x 24V, 1 x 12V) optional |
LCD | LCD 15” active color TFT-LCD, resolution 1024 x 768, LED back light, 250 cd/m² (typical) |
Touch |
Resistive (PS/2 I/F), Projected Capacitive Touch (PCT) is option |
Peripherals |
Multi-reader ( 3-track MSR, FingerPrint reader, Smart Card reader, RFID reader, waiter locks) Customer display CD-7220 2nd monitor CD-70, PM-116, PM-15BZ |
Operating System |
Windows (POSReady 2009, POSReady 7, Windows 7, Windows XP; Windows 8.1 Industry Pro Retail), Linux (ubuntu, Fedora) |
Power Supply |
AC 100-240V / DC +12V, 15A, 180 Watt power adapter |
Dimensions | 360mm (W) x 240mm (D) x 365mm (H) |
Environment | Operating; Storage Temperature; 0~40 °-20~60 °C Humidity 15% ~ 80% 15% ~ 80% |
Certifications | CE, FCC, LVD, VCCI, BSMI, 3C |
Options |
Bezelfree model, capacitive touch PCT, customer display module (2 x 20 VFD or CD-70), Dual screen (PM-116 or PM-15), 1 x Mini PCI-e, Multi-reader(3-track MSR, Smart Card reader, RFID, Fingerprint, I-Button/Dallas key/Addimat), Powered USB ports |
