MP-300 | |
Printing method | Direct Thermal |
Printing speed | 60 mm/sec |
Dot density | 203 dpi |
Dot pitch | 8 dots/mm 0.125 pitch |
Effective printing | Width: 72 mm, 576 dots/line |
Character per line | Font A (12x24) 48 columns / Font B (9x24) 64 columns |
Paper | Type: Thermal paper Width: 80 mm Thickness: 65 μm Roll diameter: max. 45 mm Roll core inner diameter: 12.5 mm +- 0.5 mm |
Reliability | TPH life: 50 km, Pulse activation: 100milin pulse or more (12.5% print ration) |
Character set | Extended graphic: 128 x 18 Page (1 space page) International character: 14 |
Barcode | EAN-8, EAN-13, CODE39, ITF, UPC-A CODABAR, CODE93, CODE128, PDF417 (2D) |
Emulation | ESC-POS |
Driver | Windows CE 4.2 & 5.0, Windows mobile 5.0 |
Sensor | Standard: Paper end sensor, Cover open sensor, Option: Black mark sensor |
Interface | Standard: Bluetooth class 2, Option: IrDA |
Power | Battery: 7.2V 1200mAH Li-ion, 2Hrs Charging Time 40-50 minutes in continuous operation |
Dimension | 106 mm (W) x 100 mm (D) x 49.5 mm (H) |
Weight | 290 g (with battery) |
Environment | Operating Storage Temperature: 5~40° C -20~60° C Humidity: 35%~80% 10~90% |

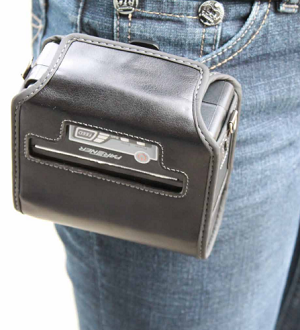

Accessories | Battery, RS-232 cable, charger, paper roll, manual, CD, leather case (option) |
Certifications | CE, FCC, CB, UL, BSMI, CCC RF: NCC, SRRC, FCC ID, R&TTE |
