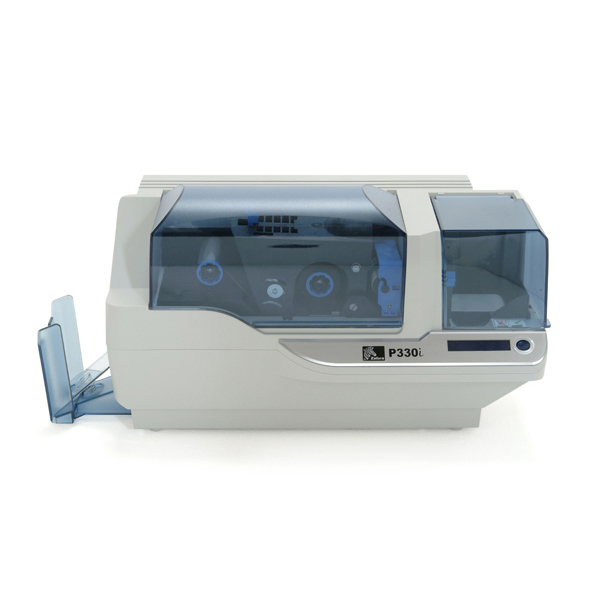

Card Printer Zebra P330i

The P330i is Zebra’s next generation card printer. Designed for demanding environments, this single sided card printer is available in full color (P330i) or monochrome (P330m). The Zebra P330i delivers consistent printing quality with its life-like colors, making it ideal for creating access control cards, gift cards, loyalty cards, membership cards, employee IDs, student IDs, and visitor IDs. The Zebra P330i is an intelligent, user-friendly card printer designed to handle high-volume tasks, security applications, and enterprise network applications.

Intelligent Design:

• Automatic driver configuration
• Optimal color output
• 300 dpi (11.8 dots/mm)
• Ribbon low notification
• Easy access to ribbon
• Large LCD monitor - easy to understand the printer status and error messages
• Versatile - Prints on a variety of card sizes and thickness

High Volume Tasks:

• 144 color cards/hour
• 600 black and white cards/hour
• Angled fed cards reduces the amount of rejects
• Clear card cover allows the user to view the status of the job and add more as needed

Security Applications:

• 3-track magnetic strip encoding (HiCo/LoCo)
• Contact/contactless smart card capabilities

Network Expansion Capabilities:

• Built-in 10/100 Ethernet interface system

Zebra P330i Printer General Specifications

• High speed printing
• 144 cards/hour for color, single side (YMCKO)
• 600 cards/hour for resin black (K)
• Windows Drivers: 2000, XP, Server 2003; Vista compatible
• Two (2) year warranty on card printer and original printhead (unlimited passes) - if shipped on or after January 1, 2007
• One (1) year warranty applies to printers shipped prior to January 1, 2007

Color Printing

• Color dye sublimation or monochrome thermal transfer printing
• 25 seconds per card full color single sided (YMCKO)
• 300dpi (11.8 dots/mm) print resolution

Bar Codes

• Code 39
• Code 128 B & C with & without check digit
• 2 of 5 & 2 of 5 Interleaved
• UPC-A
• EAN 8 & EAN 13
• PDF-417 2D bar code and other symbologies can be printed via Windows® drivers.

Fonts

• True Type fonts via Windows drivers

Card Specifications

• Types: PVC, PVC Composite, UHF Gen 2 RFID, Adhesive backed
• Card width/length: ISO CR080 - ISO 7810, 2.12" (54mm) x 3.385" (86mm)
• Magnetic Stripe - ISO 7811
• Smart Card - ISO 7816-2
• Card thickness: 10mil (.25mm) to 60mil (1.524mm)
• Card feeder capacity: 100 cards (30mil)
• Card output hopper capacity: 100 cards (30mil)
• Optional card feeder capacity: 220 cards (30mil)

Ribbon Specifications

• iSeries Printers require the use of iSeries ribbons for full color printing
• Monochrome: 1500 and 1000 cards/roll
• KdO and KrO: 500 cards/roll
• YMCK: 400 cards/roll
• YMCKO: 200 & 330 cards/roll
• 1/2 panel YMCKO: 450 cards/roll
• Overlay varnishes (clear and hologram): 350 cards/roll

Communications Interface

• USB (cable included)
• Built-in Ethernet (optional)

Mechanical

• Height: 10.1" (256mm)
• Depth: 9.4" (239mm)
• Width: 18.2" (462mm)
• Weight: 15.5lbs (7.0kg)

Electrical

• 100 ~ 240 Volts AC, 50 ~ 60 Hz (auto switching)
• 4MB image memory standard
• FCC Class B, CE, UL and cUL approved

Environmental

• Quiet for offices!
• Operating Temperature: 60°F to 86°F (15°C to 30°C)
• Operating Humidity: 20% to 65% non condensing
• Storage Temperature: 23°F to 158°F (-5°C to 70°C)
• Storage Humidity: 20% to 70% non condensing
• Ventilation: Free air

Options

• UHF Gen 2 RFID encoder
• Smart card contact station (30mil cards only)
• Built-in Ethernet (10/100)
• Contactless encoder (MIFARE)
• High capacity feeder (220 cards)
• Magnetic encoder (20-40mil cards only)
• Extended warranty program
• Hot Swap warranty program (USA only)
