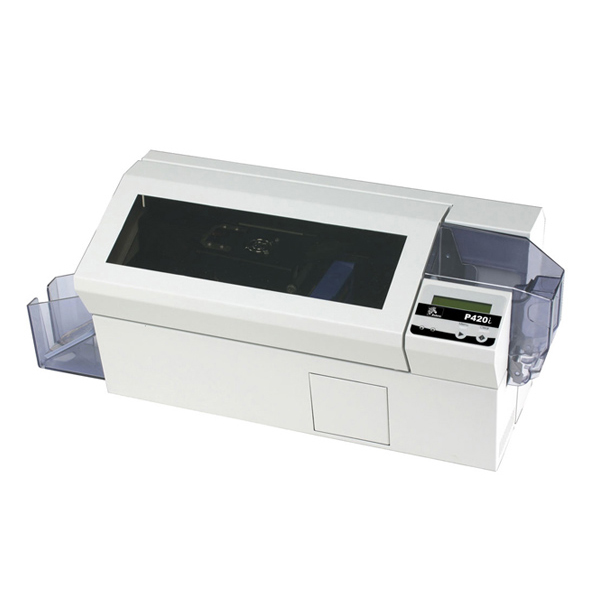

Card Printer Zebra P420i

Zebra P420i Printer Highlights

Dual-Sided, Edge-to-Edge Color Card Printing is Easier and Faster Than Ever

The Zebra P420i plastic card printer is highly versatile, and designed for high volume printing of dual-sided plastic cards in color. Use the Zebra P420i card printer to print:

• Employee ID, Time and Attendance cards
• Student ID and Facilities Access Control cards
• Club Membership and Loyalty cards

The Zebra P420i's rugged, all metal enclosure houses a low-maintenance print mechanism that includes self-cleaning card handling, high capacity ribbon system, two-line LCD control panel, and convenient card reject hopper. The reject hopper separates cards that fail encoding prior to printing, saving valuable printer ribbon. The enclosure includes a viewing window to monitor the printing process without opening the unit. Transparent input and output hoppers provide visual card capacity status.

The Zebra P420i is easy to load and use; the operator control panel displays printer status and functions that guide the operator, using easy to understand status and simple instructions. Printer ribbon synchronization is automatic, eliminating the need for operator intervention. A self-cleaning cartridge thoroughly removes dust before printing to help eliminate card rejects due to dust contamination.

Zebra card printers provide precise card printing, economical, reliable, easy-to-use operation, plus the broadest line of options, accessories and supplies in the industry.

Zebra P420i Printer General Specifications

RoHS
High speed printing, over 102 cards/hour edge to edge in full color (YMCKO/K) throughput
4MB image memory standard
Standard card flip over feature for dual sided printing
Reject Card Box feature
Small footprint
Windows Drivers for 95 and NT 4.0
One year printer warranty
One year printhead warranty (unlimited passes)
Powerful CPPL (Card Printer Program Language)

Color Printing

Color dye sublimation or monochrome thermal transfer printing
102 cards/hour throughput, 35 seconds per card, 2 sides (YMCKO/K)
300 dpi (11.8 dots/mm) print resolution
Edge to edge printing standard

Bar Codes

Code 39 - Code 128 B & C with & without check digit
2 of 5 & 2 of 5 Industrial
UPC-A
EAN 8 & EAN 13
PDF-417 2D bar code and other symbologies available via Windows driver

Fonts

Resident: Arial Normal 22, Arial Bold 28
True Type fonts available via Windows driver

Card Specifications*

Types: PVC, Composite
Card width/length: ISO CR-80 - ISO 7810, 2.125" (54mm) x 3.385" (86mm)
Magnetic Stripe - ISO 7811
Smart Card - ISO 7816-2, Card thickness: 10mil (.25mm) to 60mil (1.524mm)
Card Feeder capacity: up to 300 cards (10mil), up to 100 cards (30mil)
Card Output Hopper capacity: up to 300 cards (10mil), up to 100 cards (30mil)

Ribbon Specifications

Monochrome: 1500 cards/roll
Monochrome colors: black, red, blue, green, yellow, silver, gold, white, Scratch-Off Grey - K Resin + O: 800 cards/roll
K Dye + O: 800 cards/roll
YMCKO: 350 cards/roll
YMCKO/K: 250

Overlay Varnish Specifications

Thermal transfer
Clear and holographic options available:
- Clear
- Genuine/Secure hologram
- Pcard hologram
- Custom hologram

Communications Interface

Parallel ECP Centronics standard (cable optional)
RS232C Serial port
USB port optional (available Q3 2000)

Mechanical

Width: 20.90" (523mm) **
Depth: 10.17" (2543mm)
Height: 10.76" (269mm)
Weight: 27.5lbs (12,5kg)

Electrical

110-230V, 50/60 Hz
FCC Class A, CE, UL and cUL approved

Environmental

Operating temperature: 60°F to 86°F (15°C to 30°C)
Operating humidity: 20% to 65% non condensing
Storage temperature: -23°F to 158°F (-5°C to 70°C)
Humidity:10% to 90% non condensing
Ventilation: Free air

Options

RS232C Serial port (EPCL recommended for fast throughput)
USB port (available Q3 2000)
Smart Card contact station (30mil cards only)
Magnetic encoder (30mil cards only)
Extended warranty program
Hot Swap warranty program
Cleaning supplies
Service manual

* For optimum performance use Zebra Card Printer media.
** Without card feeder and card hopper
