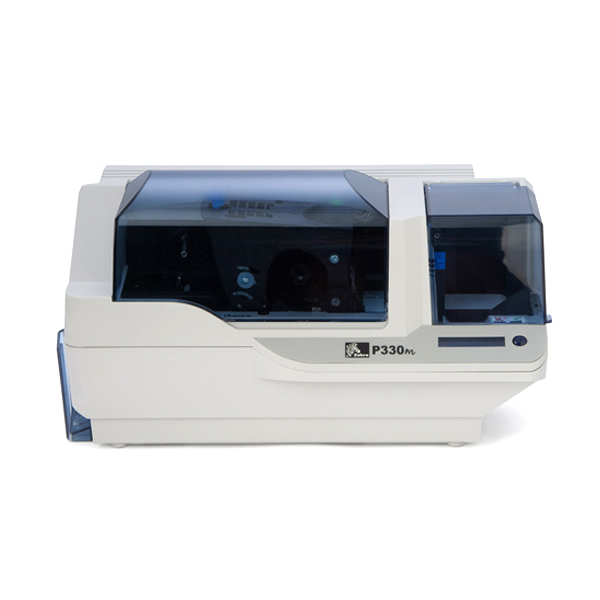

Card Printer Zebra P330m

Easy to use and loaded with options, the Zebra P330m single-sided monochrome card printer produces reliable and high performance printing at an affordable price.

Ideal for

• Access Control
• Gift Cards
• Loyalty Cards
• Membership cards
• Staff Identification
• Student Identification
• Visitor Identification

Powerful

Setting new standards, this single-sided, monochrome card printer is loaded with user-friendly features and dynamic options, which make it the most powerful and flexible printer in its class.

Reliable

With its new, innovative and highly reliable angled feeder design (patent pending); there is simply no better choice than the P330m for mission critical applications.

Flexible

Designed to integrate seamlessly in a wide variety of applications, the P330m comes standard with an LCD and offers a full range of options, including built-in Ethernet.

• Automatic Driver Configuration
• Monochrome ribbon-save mode
• Enhanced Ribbon Formulation

Zebra P330m Printer General Specifications

High speed printing
5.2 cards/sec for resin black (K)
Windows Drivers: 2000, XP, Server 2003; Vista compatible
Two (2) year warranty on card printer and original printhead (unlimited passes) - if shipped on or after January 1, 2007
One (1) year warranty applies to printers shipped prior to January 1, 2007

Color Printing

Monochrome thermal transfer printing
5.2 seconds per card monochrome single sided
300dpi (11.8 dots/mm) print resolution

Bar Codes

Code 39
Code 128 B & C with & without check digit
2 of 5 & 2 of 5 Interleaved
UPC-A
EAN 8 & EAN 13
PDF-417 2D bar code and other symbologies can be printed via Windows® drivers

Fonts

True Type fonts via Windows™ drivers

Card Specifications

Types: PVC, PVC Composite
Card width/length: ISO CR-80 - ISO 7810, 2.12" (54mm) x 3.385" (86mm)
Magnetic Stripe - ISO 7811
Smart Card - ISO 7816-2
Card thickness: 10mil (.25mm) to 60mil (1.524mm)
Card feeder capacity: 100 cards (30mil)
Card output hopper capacity: 100 cards (30mil)
Optional card feeder capacity: 220 cards (30mil)

Ribbon Specifications

Monochrome: 1500 and 1000 cards/roll
Overlay varnishes (clear and hologram): 350 cards/roll

Communications Interface

USB (cable included)
Optional Built-in Ethernet

Mechanical

Height: 10.1" (256mm)
Depth: 9.4" (239mm)
Width: 18.2" (452mm)
Weight: 15.5lbs (7.0kg)

Electrical

100 ~ 240 Volts AC, 50 ~ 60 Hz (auto switching)
4MB image memory standard
FCC Class B, CE, UL and cUL approved

Environmental

Quiet for offices!
Operating Temperature: 60°F to 86°F (15°C to 30°C)
Operating Humidity: 20% to 65% non condensing
Storage Temperature: 23°F to 158°F (-5°C to 70°C)
Ventilation: Free air

Options

Smart card contact station (30mil cards only)
Built-in Ethernet
Contactless encoding
High capacity feeder (220 cards)
Magnetic encoder (20-40mil cards only)
Extended warranty program
Hot Swap warranty program, 1 Year Free (N/A, LA only)
