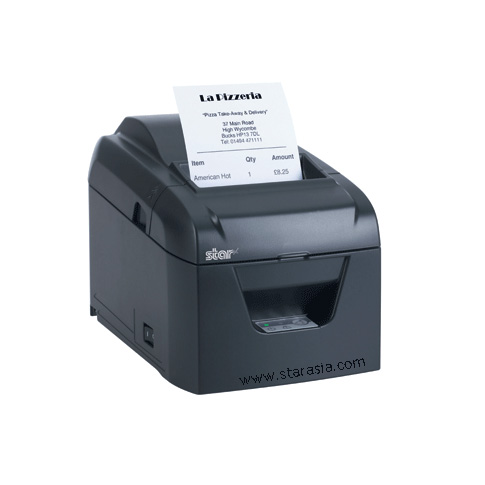

STAR TSP043 Thermal Printer
New low cost, High Speed, Quality POS printer series
With its robust design and lever-free paper loading, this printer is designed to perform in the harshest of retail and hospitality environments. Its high speed processing of receipts (up to 250mm/second) as well as Dual Interface make it the first choice for retailers and hospitality operators globally.
"Intelligent" Design
Low cost Installation - Dual interface Models - USB+Parallel or USB+Serial
10cm diameter Paper Roll capacity
Unique 10cm outside diameter paper roll capacity with 60% more paper on a roll which means fewer paper roll changes; decreased cost per receipt; reduced paper roll transport and storage requirements.
STAR 10cm Roll Paper Saving Advantages | ||
Paper Width | 80mm | 80mm |
Outside diameter | 79.5mm | 101mm |
Core Size | 12.7mm | 12.7mm |
Paper Thickness | 65microns | 65micronics |
Length of Paper on Single Roll | 74m | 124m |
Increase over Standard Roll | 0% | 67.5% |
Resolution up to 203dpi
Superior Quality Hardware
ESC/POS™ emulation with Star Configuration Utility including OPOS™ and Epson cash drawer compatibility.
No DIP Switch
Advanced Splash / Dust Proof design
Compact, Easy-Load "Drop-In & Print" - with lever-free paper loading to increase reliability.
All-inclusive StarPRNT driver and utility suite with WHQL certification on CD in box
StarPRNT Intelligence includes: -
Low cost maintenance - PS60 power supply can be included in box.
Lost cost maintenance of print head, cutter and PCB. Simply remove the front printer cover to access the cutter and print head or black plate to access the main printer circuit board (PCB).
Model | TSP043 Autocutter Version |
Print Method | Direct Line Thermal Printing |
Print Resolution | 203 dpi |
Speed: TRUE Print Speed Paper Feed Speed | Up to 250mm/second Up to 300mm/second |
Software Control: Logo Store Emulation Code Pages Dual Interface Windows Driver Drivers available Character Size / Line Spacing Compressed Print Barcodes | Epson compatible - up to 512KB / 9,025 logos (new) ESC/POS™ 40 + 1 blank USB + Serial USB + Parallel ESC/POS™ with StarPRNT Intelligence & config utility Windows XP SP3, Vista 32/64 SP2, 7 32/64 None SP/SP1 Font A: 12 x 24 Font B: 9 x 24 Font A: 42/48(80mm) or 30/33(58mm) Font B: 56/64(80mm) or 40/45(58mm) (Selectable by Memory Switch) Vertical 50%, Horizontal 67% (by Firmware) 1D X 9 versions / 2D - PDF417 |
Paper Specifications: Width Printable Width Roll Diameter Thickness Top Margin | 58 / 80mm (80mm default with 58mm guide) 64mm / 45mm (72mm / 50.8mm Selectable by Memory Switch) up to 102mm 0.065 - 0.085mm (0.057 - 0.065mm special paper only) Approx. 11mm |
Paper Sensor | Photo PE sensor : Standard |
Power Supply Input / Supply Voltage | PS60A 100V (-10%) to 240V (+10%) / 24V DC |
Reliability Autocutter Min Cut Length Autocutter Life Print Head Life | 60 million lines MCBF Partial Cut (One-Point Center) / Guillotine Type 24mm (0.065mm <= paper thickness <= 0.085mm) 1 million cuts 100 KM (using recommended paper) |
Additional Information: Simplified Tear-Bar Vertical Use Dimensions Weight | Supported Not Supported (only up to 45 degrees) 142(W) X 212(D) X 149(H) mm 1.39 Kg (only printer except roll paper) |
