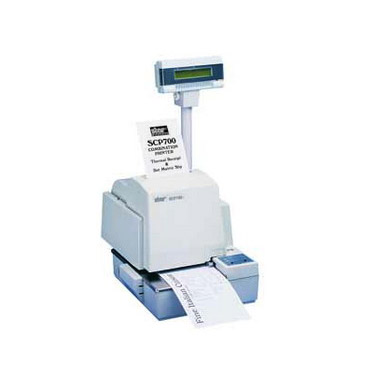

The combination of Star’ s 30 years of manufacturing experiance of matirx and thermal printer technologies has culminated in a new and revolutionary retail POS solution. Retailers are now able to reduce space and costs by using Star’ s new intelligent Two-in-One Printer with optional dual interface and data "pass-through" functions.
Fast, flexible and compant - the new conbination printer from Star allows printer / system configurations which were previously unavailable!
Models | SCP700 |
SCP700 Printer | |
Standard Interface | RS232C (D-sub 9 pin) |
Support Interfaces | Customer Display Dual Cash Drawer Driver |
Optional Additional Interface | RS232C (D-Sub 25 pin) or Centronics Parallel input. |
Power Requirement | 24V DC / 2A, Connector Type TCS7960 53-2010 (HOSIDEN) |
Agency Approval | UL C-UL FCC Class A TÜV CE |
Dimensions and weight | 180mm (W) x 270mm (D) x 200mm (H), 3.5Kg |
Operating environment | 5°C to 35°C 25% to 85% RH (w/o) condensation |
Slip Printer | |
Printer Method | 9-pin serial impact dot matrix with true descenders |
Print Speed | Up to 3.1 lines per second with bi-directional cheque mode |
Emulation | Star Mode ESC/POS™ (EPSON TM-U295) |
Interface | Parallel Serial RS232C |
Paper Copy CapabilityPaper Width / Length Margin Top / Bottom Paper Feed Speed Forward / Reverse | Orignal + two copies 80 / 80mm (minimum) 5 / 14mm 3.5 / 4.5 inches per second or 21 / 27 lines per second |
Number of Columns | 42 (7 x 9 font) |
Print Width | 63mm |
Peripheral Driver | Two drivers with compulsion switch input |
Buffer Star Mode ESC/POS™ Mode | 2048 Byte 512 Byte or 35 Byte |
Reliability | 9 million lines Calculated Real Time MCBF / 2.5 million lines (Triditional) |
Head Life | 70 million characters |
Power Supply | Option 100 ~ 240V AC / 24V DC |
Dimensions | 180 (W) x 190 (D) x 138 (H) mm |
Weight | 2.1Kg (approx.) |
Ribbons | Black RC200B, 1.2 million characters |
Drivers Available | OPOS™ , Winodws™ Line mode with control font support |
Thermal Receipt Printer | |
Print method | Direct line thermal |
Print Head | Linear Thermal head |
Print Resolution | 8 (H) x 8 (V) dots/mm (203dpi) |
Print Speed | 16.7 lines per sec (50mm/sec) |
Number of columns | 48 (12 x 12 Font), Font A 64 (9 x 24 font) (EPSON TM-T85 mode only), Font B |
Printable Width | 72mm |
Number of Dots / Line | 576 dots |
Font, Character Size | 12 X 24 / 8 X 24 |
Paper width | 80mm |
Paper Diameter | 85mm |
Paper Thickness | 0.06 to 0.85 mm |
Core Diameter | Inner 12mm ± 1mm Outer 17mm ± 1mm |
Paper Feed Method | Stepping Motor |
Paper Feed Speed | 50mm/sec |
Sensor | Paper out, Near END (3 Adjustable positions) |
Autocutter type | Full or partial cut |
Reliability | 10 Million Lines 38 Million Lines Calculated teal time MCBF |
Print head life | 50KM |
Autocutter MCBF | 300,000 cuts |
Customer Display SCD-202 (optional) | |
Type | Back lit LCD |
Number of columns | 20 Coutmns x 2 lines |
Interface Card (optional) | |
IFBD-D IFBD-C | RS232C (D-sub 25 pin) Bi-directional IEEE1284 compatible (ampenol type 36 pin connector) |
