POS System Wincor Nixdorf Beetle Express

Code: Beetle Express

The BEETLE /Express is a versatile and compact POS terminal or kiosk system with an elegant and stylish “all-in-one” design and graphical touch user interface.

Price: Call

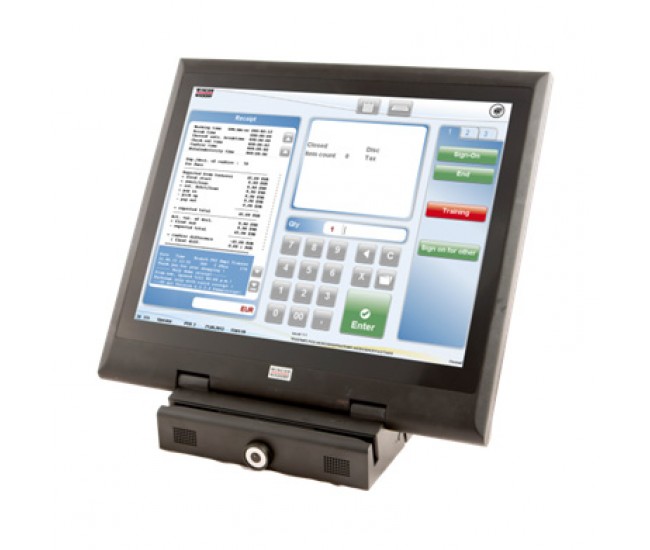

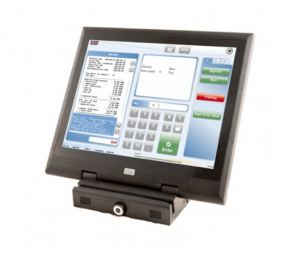

BEETLE / Express Pos system

The BEETLE /Express is a versatile and compact POS terminal or kiosk system with an elegant and stylish “all-in-one” design and graphical touch user interface. The system dovetails seamlessly into the open standards-based BEETLE POS fami- ly. It boasts a selection of standard and retail-specific interfaces. Numerous peripherals tailored to the customer’s requirements can be directly integrated, for example:

Magnetic card reader
Customer display
iButton waiter lock

Features:

Compact, all-in-one POS and kiosk system
Energy-efficient Intel Atom processor technology
Integrated, non-reflective 10.4“ / 15“ touch display
Ideal for retailers looking for a space-saving POS or kiosk system that can be used intuitively, is easy to install and has an attractive price

Highlights:

Smart, space-saving all-in-one touch POS or kiosk system
Lowest power consumption
Solid State Disk and CF card option
IPx4 water protection rating
Optional adaptable peripherals: iButton, MSR and customer display
VESA compatible

Processors	Intel Atom D425 1.8 GHz
	Intel Atom D525 2x 1.8 GHz
Main Memory	2 GB up to 4 GB DDR3
Display
10.4” Display
	- 10.4″ CCFL backlight, 4:3 ratio
	- LED LCD backlight
	- Max. resolution 800 x 600
	- LCD brightness: 230 cd/m2
	- LCD contract ratio: 500:1
	- 5-wire analog resistive touch
15” Display
	- 15″ CCFL backlight, 4:3 ratio
	- LED LCD backlight
	- Max. resolution 1024 x 768
	- LCD brightness: 250 cd/m2
	- LCD contract ratio: 500:1
	- 5-wire analog resistive touch
Interfaces	2xRS232 (1 standard + 1 powered)
	5 USB ( 5 standard + 0 powered)
	LAN (MBit/s): 10/100
	1 Cash drawer
	1 PC card slot for CF: 1
Storage media	2.5″ hard disk or
	Solid State Disk (SSD)
Intergrable peripherals (option)	MSR
	Two-line customer display
	iButton waiter lock
System Management	Desktop Management Interface (DMI)
	Preboot Execution Environment (PXE)
	Wake on LAN (WoL)
	Advanced Configuration and Power Interface (ACPI)
Security	Kensington Security slot
Dimensions (WxHxD in mm)	263 x 285 x 293
Operating systems	Windows XP Prof.
	Windows POSReady 2009
	WNLPOS (Linux)
