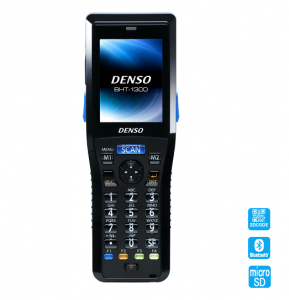

BHT-1300Q BHT-OS 2D Handy Terminal

Code: BHT-1300Q BHT-OS

Provider: Denso

Mã Vạch 2D

· Each model’s body is more than 15% thinner, lighter and smaller(1) · Design was sought for functional beauty that also allows comfortable operation despite size constraints. · Dome-shaped keys are used, which can be operated

Price: Call

BHT-1300Q BHT-OS 2D Handy Terminal

Compact, but easy to use
· Each model’s body is more than 15% thinner, lighter and smaller(1)
· Design was sought for functional beauty that also allows comfortable operation despite size constraints.
· Dome-shaped keys are used, which can be operatedeasily by workers wearing work gloves.

Distinctive displays even in bright sunlight
· A high-visibility LCD, High-Bright Display, is used.
· A wide viewing angle, and therefore, enhanced visibilityfrom oblique angles is realized.

Unique power-saving designenables extended operation time.
Long operation possible even when the unit is kept online· Operation time longer than Windows-OS model.
· Unique power-saving design enables best-in-class long-time operation of 40 hours(2) even when continuously connected by wireless.

Capability to read codes from any angle of 360° makes for quick reading.
Long operation possible even when the unit is kept online· Smooth 360° reading is realized using the latest algorithms.
· Compared to barcode models, working time with the modelcan be reduced up to 30%.

Ready for use with simple business application software.
· A simple business application software (Easy Pack Ad) allowing collection of actual records for inventory and inspection plus 1:1/1:n collation is included as standard equipment.
· No other devices are required for data transmission.

Easy-to-usebattery-powered terminal
· Even in the case of sudden loss of battery power, commercially-available dry-cell batteries can be used.

What makes workers in field operations feel like using the model?

In retail/wholesale fields
It can be held comfortably even by women, and its aesthetics enable it to fit in anywhere with style. Thanks to its 360° reading capability, inventory time can be drastically cut.

In distribution/ manufacturing fields
Round-the-clock use of the model, which is compliant with IEEE 802.11 b/g/n, is possible while it is operated online. The model’s robust durability ensuresaccurate use in tough work environments

Type			BHT-1306Q	BHT-1306QWB
OS			BHT-OS
CPU			32bit　RISC microprocessor
Memory	Flash ROM		64MB(45MB for user area)
Display	Number of Dots		QVGA(240×320 dots)
	Display device		Liquid crystal dot matrix display (color)
	Displayable characters	16-dot font	15(2-bite characters)×20 rows, 30(1-bite characters)×20 rows
	Displayable characters	24-dot font	10(2-bite characters)×13 rows, 20(1-bite characters)×13 rows
	Back light		White LED
Scanner	Mode		Area sensor
	Decode	2D code	QR code, micro QR code, SQRC iQR, PDF417, micro PDF417, Maxi code, DataMatrix(ECC200), GS1 DataBar Composite(EAN.UCC Composite)
	Decode	Barcode	EAN-13/-8(JAN-13/-8), UPC-A/-E、UPC/EAN(Add-on embedded), Interleaved 2 of 5, CODABAR（NW-7）, CODE39, CODE93, CODE128, GS1-128（EAN-128）, Standard 2 of 5(STF), GS1 Databar(RSS)
	Minimum resolution	2D code	0.167mm
	Minimum resolution	Barcode	0.125mm
	Reading reference position		100mm
	Maker		Area guide maker
	Scan Confirmation		LED in three colors: Blue/red/green, speaker, vibration
Key input section	Number of keys		21 keys (including power key) + Cross-hair cursor key + 3 trigger keys
Communication	Optical I/F	Communication mode	Infrared ray (IrDA Ver.1.2[low power]physical signaling layer-compliant)
		Transmission spped	Up to 115.2kbps、460.8kbps
		Communication distance	Approximately 0.15ｍ MAX.
	Wireless LAN	Suitable standard	-	IEEE.802.11b/g/n compliant
		Frequency	-	2.4GHz band
		Communication distance	-	Approx.75m indoors, approx.200m outdoors
		Transmission speed	-	IEEE.802.11b：11/5.5/2/1Mbps, IEEE.802.11g：54/48/36/24/18/12/9/6Mbps, IEEE802.11n:65/58.5/52/39/26/19.5/13/6.5Mbps
		Access method	-	Infrastructure mode, ad-hoc mode
		Security	-	WEP40,128, WPA-PSK(TKIP), WPA2-PSK(AES), WPA-1x(TKIP/EAP-TLS,PEAP),WPA2-1x(AES/EAP-TLS,PEAP), 802.1x(EAP-TLS,PEAP)
	Bluetooth		-	Bluetooth　Ver.2.1 + EDR based class 2
	Cable I/F		USB Ver.2.0(USB microB)
Card slot			MicroSD or MicroSDHC(～32GB)×1(FAT32 compliant)
Additional functionality			Clock, speaker,vibrator, battery, and voltage indicators, keypad backlight, remot wakeup
Environmental performance	Operating tenperature		－20 to 50℃
	Security level		IP54
	Drop resistance		2.0m drop on concrete floor /1.2mheight over a concrete floor with each of 6 sides of the enclosure facing down (60 times total)
Mass			Approx. 188g (With thin battery mouted), approx.206g (with standard battery mounted）
