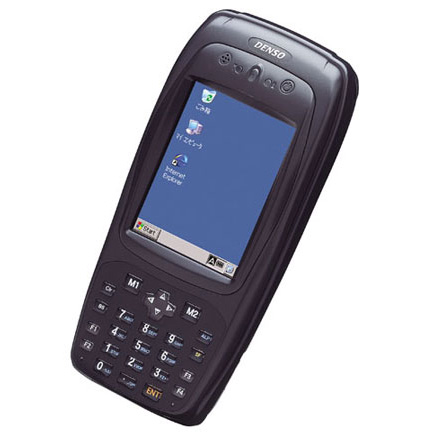

Data Collector Denso BHT-200BW-CE series

Code: BHT-200BW-CE series

Provider: Denso

Windows®CE 5.0 model with a 3.5" color touch panel to facilitate on-screen data input.

Price: Call

Data Collector Denso BHT-200BW-CE series

Microsoft embedded Operating System provides an open architecture for application development.

Progressive Advanced Scanning

At a range of up to 700mm the advanced CCD scanning system enables high performance reading capability,even narrow bar labels are quickly read at this distance.

QVGA color large display

Large screen with 240 x 320 (QVGA)resolution enables quick viewing of a large amount of text at a single glance. Color display offers enhanced text and image rendering.

High Durability

The CCD Scan engine has no moving parts ensuring superior durability.Shock Resistant to withstand multiple drops from 1.2m onto concrete, and sealed against water and dust to IP54 international standard.

Grip model

Designed for various logistic industrial application.Additional battery in a grip enables long lasting operation.(Battery Power 1700mAh x 2)

High speed Processing

With DENSO's featurely developed driver, scanned bar code information is quickly processed and shown on the display.

Development tools

Microsoft® eMbedde™ Visual C++ Windows CE Version BHT Software Dveloper's Kit(SDK)

Operating Systems	Microsoft® Windows® CE 5.0.
Processor	Intel®PXA270 Processer (MAX520MHz),
Display	TFT colour LCD, 240 x 320 (QVGA) ; Backlight: LED
Memory	64 MB (30 MB dành cho người sử dụng)
Ram	128 MB (90 MB dành cho người sử dụng)
Scanner	Lazer
Read Range	Maximum 90 cm.
Max resolution	0,15 mm.
Bar Codes	EAN-13/8,UPC-A/-E,UPC/EAN(With add-on codes), Interleaved 2 of 5, CODABAR,Code39, Code93,Code128(EAN 128), STF, MSI
Keyboard	26 keys + 2 trigger keys (BHT-212BW-CE) ; 26 keys + 3 trigger keys (BHT-232BW-CE) ; 30 keys + 2 trigger keys (BHT-262) ; 30 keys + 3 trigger keys (BHT-282)Interfaces: RS232C (115.2kbps MAX.), Infrared (IrDA-SIR 1.2 compliant), Wireless IEEE802.11b/g (option)
Environmental Sealing	IP54 ; Drop resistance 30 times from 1.2 m
Power supply unit interfaces	Litium-ion battery cartridge
