Barcodes Scanner Datalogic Gryphon L GD4300

Code: Gryphon L GD4300
Provider: Datalogic
Cổng USB Mã Vạch 1D
For customers who want the high performance associated with laser scanning technology, the Datalogic barcode scanning Gryphon GD4300 scanner is an ideal solution providing longer reading distances
Price: Call

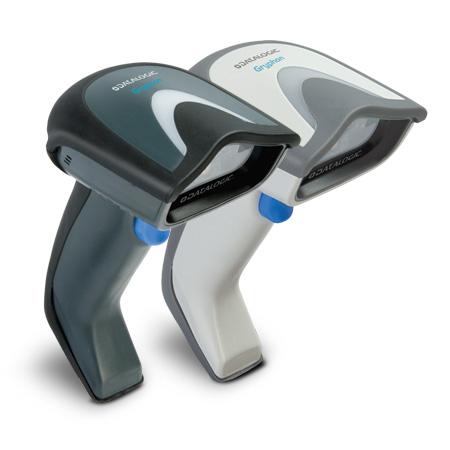

Gryphon™ L GD4300 barcode scanner

For customers who want the high performance associated with laser scanning technology, the Gryphon GD4300 scanner is an ideal solution providing longer reading distances, snappy performance with a bright, well-defined scan line. Poor quality bar codes and low contrast labels with bad edge definition are not a problem for this Gryphon scanner, plus Datalogic’s patented Green Spot provides visual good-read feedback directly on the code, allowing for fast and accurate scanning which is especially useful in noisy environments or in places where “beep-free” reading is desired.

Compact, reliable design


The scanner’s stylish enclosure, light weight and compact size make it perfect for use in retail and office applications. Light industrial users will appreciate the scanners toughness. Its rubber-like overmold cushions the scanner when dropped, protects the scan window and prevents the scanner from slipping off counter surfaces. Featuring an IP52 sealing rating, its strong enclosure guards against dust and liquid spills, and anti-shock mounts provide additional protection for the internal scan engine and optics.

Multi-interface options

The Gryphon GD4300 readers offer a choice of two sets of multi-interface options: USB, Keyboard Wedge, RS-232 and Wand Emulation, or for use at the point-of-sale (POS), IBM 46XX, USB and RS-232. Both interface sets offer configuration flexibility and are easily adapted for migration or future changes to the host system. Remote Host Download lowers the service costs and improves operations allowing for hassle-free field upgrades while the Datalogic Aladdin™ configuration software provides user-friendly features that simplify the start-up procedure, especially for inexperienced users.
Technology Laser
Ability read Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes ; Postal Codes: China Post ; Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Interface Keyboard Wedge, RS 232, USB
Durability IP52. Withstands repeated drops from 1.8 m
Max speed 100 reads/sec
Print contrast 25%
Max resolution 0.102 mm ( = 4 mils)
Ambient Light 0 –100.000 lux
Typical Depth of Field Printing resolution, contrast and ambient light dependent:
5 mils: 3.6 to 15.8 cm / 1.4 to 6.2 in
7.5 mils: 3.0 to 25.0 cm / 1.2 to 9.9 in
10 mils: 2.8 to 35.0 cm / 1.1 to 13.8 in
13 mils: 2.2 to 47.5 cm / 0.9 to 18.8 in
20 mils: Up to 69.0 cm / 27.2 in
(5 mils = 0.130 mm);
Reading Indicators Beeper (Adjustable Tone); Datalogic ‘Green Spot’ Good Read Feedback ; Good Read LED
Applications The pertiency is user for supermakets, bookstores and shops
