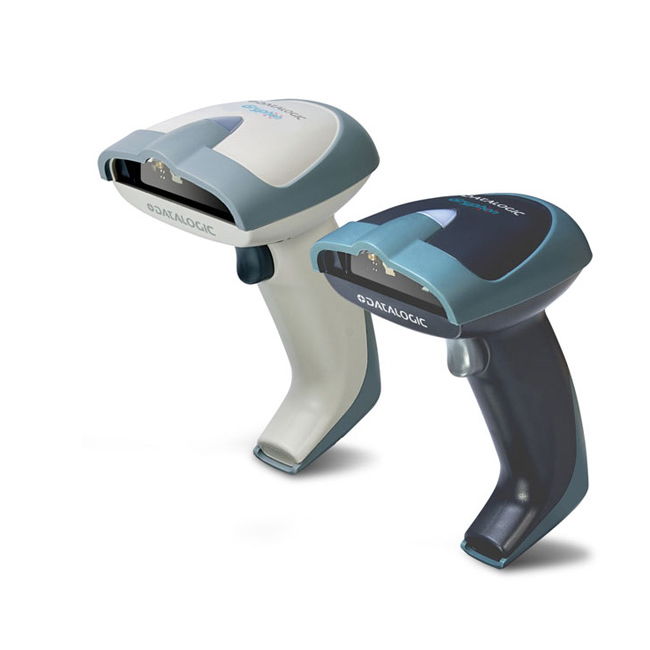

Barcode Scanner Datalogic ryphon Desk 2D Plus

Code: Gryphon Desk 2D Plus
Provider: Datalogic
Cổng USB Mã Vạch 1D Mã Vạch 2D
With rich feature sets and extensive model options, the Gryphon product series from Datalogic Scanning represents the premium level of data collection equipment for general purpose applications.
Price: Call

Barcode Scanner Datalogic ryphon Desk 2D Plus

With rich feature sets and extensive model options, the Gryphon product series from Datalogic Scanning represents the premium level of data collection equipment for general purpose applications. The Gryphon Desk 2D Plus reader series have enhanced optics with improved ‘motion tolerance’ allowing codes placed on fast moving objects to be easily and quickly captured, creating the ideal reader for tasks requiring high throughput like those found in retail and light industrial environments.

Featuring outstanding snappiness and omnidirectional reading, the Gryphon D4X2 Plus improves productivity and efficiency in a wide range of applications. It supports the most common symbologies including 1D, 2D and postal codes plus stacked and composite codes like PDF417 and GS1 DataBar. The D4X2 Plus reader can also capture the entire image of an object to be identified, regardless of its orientation, making it ideal for ‘image-based’ applications such as signature capture and wide document scanning. The Gryphon D432E model is for applications reading high resolution 2D codes.

The Gryphon Desk 2D Plus readers feature Datalogic’s exclusive patented ‘Green Spot’ providing good read feedback directly on the code which is especially useful for noisy environments. Aiming at the image to be captured is easy and intuitive, with the single click trigger that enables the Datalogic 5-dot aimer, marking the four corners and center of the reading area.

The Gryphon D4X2 Plus reader is available in two different interface models: a multi-standard interface for connection to the host via USB (COM and Wedge Emulation), RS-232 or Wedge Emulation or an IBM 46XX interface model which also includes USB and RS-232 interfaces. The Datalogic Aladdin™ configuration program provides user-friendly features to easily configure all of the reader’s parameters as well as provides a quick view of downloaded images.
Technology Linear Image; 2D CMOS Array: 752 x 480 pixels
Ability read Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes ; Postal Codes: Australian Post China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC) ; 2D Codes: Aztec Code, Data Matrix, MaxiCode, QR Code ; Stack Codes: EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
Interface Keyboard Wedge, RS 232, USB
Durability IP50. Withstands repeated drops from 1.8 m
Print contrast 23%
Max resolution Tuyến tính 0.102 mm ( = 4 mils), Data Matrix 0.168 mm ( = 6,6 mils)
Ambient Light 0 –100.000 lux
Typical Depth of Field Printing resolution, contrast and ambient light dependent:
10 mil Data Matrix: 1.5 to 14.0 cm / 0.6 to 5.5 in
10 mil PDF: 0.5 to 22.0 cm / 0.2 to 8.6 in
EAN13 - 13 mils: 1.5 to 22.0 cm / 0.6 to 8.6 in
(5 mils = 0.130 mm);
Reading Indicators Beeper (Adjustable Tone); Datalogic ‘Green Spot’ Good Read Feedback ; Good Read LED
Image Capture Wide VGA: 752 x 480 pixels; Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2
Applications The pertiency is user for supermakets, bookstores and shops
