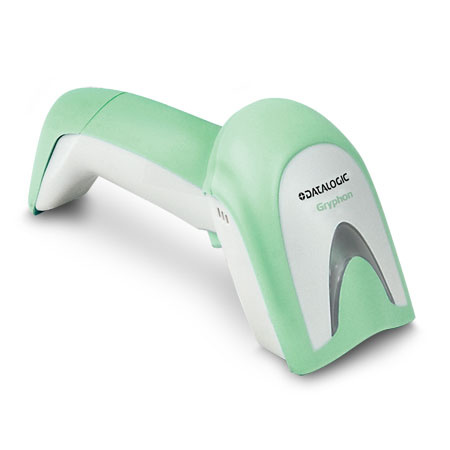

With rich feature sets and extensive model options, the Gryphon™ product series from Datalogic ADC represents the premium level of data collection equipment for general purpose applications. The Gryphon I linear imaging readers provide advanced reading performance and decoding for a wide variety of applications.
The Gryphon GD4100 readers’ ability to capture bar codes from near contact to over 1.0 m / 3.9 ft increases productivity and improves ergonomics for users. A wide scan angle reads very wide codes and renewed decoding capabilities increase throughput on hard-to-read, poor or damaged codes. All of these features combined with low-resolution decoding for labels as small as 3 mils, establishes the Gryphon I GD4100 readers as high-performance products and powerful data capture solutions.
Datalogic’s exclusive patented ‘Green Spot’ technology for good-read feedback directly on the code is ideal under dim lighting conditions or noisy environments. The Green Spot, together with the fast reading and decoding capabilities make the Gryphon I GD4100 readers the best choice to improve productivity in retail and office environments, hospitals, pharmacies, warehouses and manufacturing plants.
The Gryphon I GD4100 readers offer a choice of two sets of multi-interface options: USB, Keyboard Wedge, RS-232 and Wand Emulation, or for use in point-of-sale (POS) environments, IBM 46XX, USB and RS-232.
Extremely snappy reading performance with speeds up to 325 reads/second
Extended reading distances including up to 60.0 cm / 23.6 in for 13 mil UPC/EAN 13 labels
Wide 42° scan angle for reading wider codes
Datalogic's patented 'Green Spot' technology for good-read feedback
Remote Host Download lowers service costs and improves operations (GD4110 Model)
Multi-interface solutions support most popular interfaces including USB, RS-232, Keyboard Wedge, IBM 46XX and Wand
Checkpoint Systems EAS compatible model
USB Certified Kits Available
Technology | Linear Image; Image Sensor CCD Solid-state |
Ability read | Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes ; Postal Codes: China Post ; Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional |
Interface | Keyboard Wedge, RS 232, USB |
Durability | IP52. Withstands repeated drops from 1.5 m |
Max speed | 325 reads/sec |
Print contrast | 15% |
Max resolution | 0.076 mm ( = 3 mils) |
Ambient Light | 0 –100.000 lux |
Typical Depth of Field | Printing resolution, contrast and ambient light dependent: 6.0 to 18.0 cm for codes 5 mils; 3.5 to 30.0 cm for codes 7.5 mils; 2.0 to 45.0 cm for codes 10 mils; 3.0 to 60.0 cm for codes 13 mils; 3.0 to 80.0 cm for codes 20 mils; (5 mils = 0.130 mm); |
Reading Indicators | Beeper (Adjustable Tone); Datalogic ‘Green Spot’ Good Read Feedback ; Good Read LED |
Applications | The pertiency is user for supermakets, bookstores and shops |
