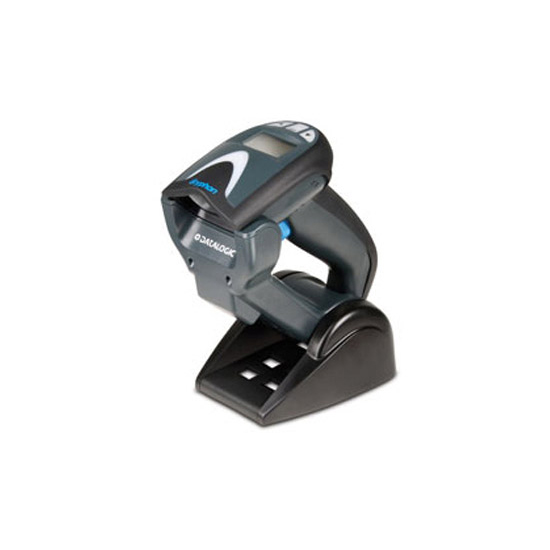

Barcode Scanner Datalogic Gryphon I GBT4100

Code: Gryphon I GBT4100

Mã Vạch 1D Wi-Fi

The Gryphon GBT4100 reader offers the richest feature set among the general purpose products.

Price: Call

The Gryphon GBT4100 barcode reader

offers the richest feature set among the general purpose products.

Featuring Bluetooth® Wireless Technology, the Datalogic Gryphon GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth® v2.0 compliant device.

Big memory

The Gryphon GBT4100 reader’s batch mode capability allows more than 1200 bar codes to be stored in the memory, combined with a 33,000 scans per charge Lithium-Ion battery. These two features create unlimited mobility and reliable data collection when out-of-range.

Multi Interface

Standard multi-interface capabilities include USB, RS-232, Keyboard Wedge and Wand Emulation for the GBT4130 models. IBM interface models include IBM 46XX, USB and RS-232 Emulation for the GBT4110 models.

Features

Fastest speed-to-read: 325 scans/second
Bluetooth Wireless Technology with up to 30 m / 98 ft range
Point-to-point and multi-point transmission
Two-position cradle with Scan-While-Charging capability
Batch Mode capability (>1200 codes stored in memory)
User-replaceable and long lasting Lithium-Ion battery

Wireless Technology	Bluetooth 2.0 Certified Class 2; Radio Frequency 2.4 GHz; Radio Range (Open Air) 30 m
Technology	Linear Image ; Image Sensor CCD Solid-state
Ability read	Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes ; Postal Codes: China Post ; Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Interface	Keyboard Wedge, RS 232, USB
Durability	IP52. Withstands repeated drops from 1.8 m
Max speed	325 reads/sec
Print contrast	15%
Max resolution	0.076 mm ( = 3 mils)
Ambient Light	0 – 100.000 lux
Typical Depth of Field	Printing resolution, contrast and ambient light dependent: 6.0 to 18.0 cm for codes 5 mils; 3.5 to 30.0 cm for codes 7.5 mils; 2.0 to 45.0 cm for codes 10 mils; 3.0 to 60.0 cm for codes 13 mils; 3.0 to 80.0 cm for codes 20 mils; (5 mils = 0.130 mm);
Reading Indicators	Beeper (Adjustable tone and volume); Datalogic “Green Spot” good read feedback; Good read LED
Battery	Battery Type Lithium-Ion, 2100 mAh; Charge Time 4 Hours; Reads per Charge 33000
Applications	The pertiency is user for bookstores, supermakets and shops
