Part Number | Model | Description |
39633000 | SM-L200-UB40 | Portable Thermal 2" Tear Bar, receipt/label, Bluetooth Low Energy/USB, Black, USB cable for charging included |
39633100 | SM-L204-UB40 | Portable Thermal 2" Tear Bar, receipt/label, Bluetooth Low Energy/USB, Black, MSR, USB cable for charging included |
Options | ||
37965490 | USB Wall Charger | USB Power Adapter (5V) for SM-L200 printer |
Paper and Supplies | ||
37962150 | TRF-58-D38-C12 | 2-inch paper roll for SM-L200 High Grade |

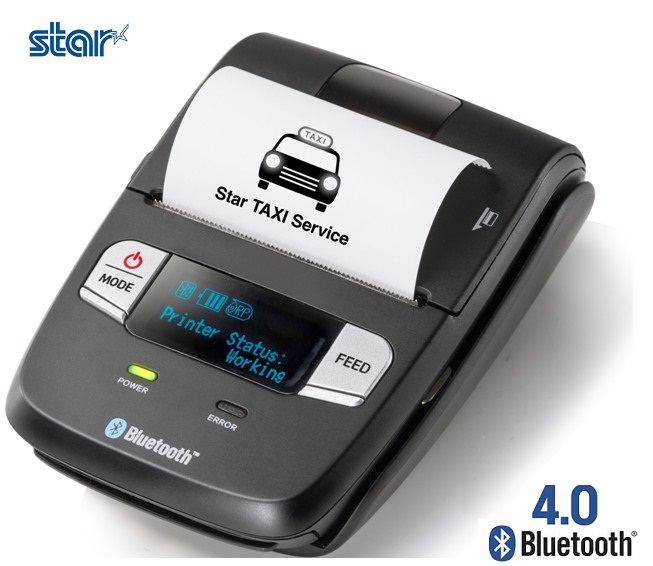

SM-L200 Printer Specifications | |
Printer Method | Direct Line Thermal Printing |
Print Speed | 30mm/sec |
Print Width | 58mm |
Print Resolution | 203 dpi |
Dimensions | 83(W) x 122.5(D) x 44(H) mm |
Weight |
220g (battery loaded)
|
Battery Type | Lithium Ion |
Battery Duration | 20 Hour Standby Mode |
AC Adapter | 4 Hours Full Charge Time |
Power Voltage | 3.7 V |
Paper Specifications Media Loading Method Width Thickness Roll Diameter | Thermal Paper "Drop-In & Print" 58 mm 0.06 - 0.07mm 39 mm |
Interface | Bluetooth BLE (3.0, 4.0), USB |
Reliability MCBF Print Head
|
37M Lines 50km |
Magnetic Stripe Reader | Supports MSR ISO7811 Triple Tracks (Optional) |
Drop Test | Without MSR: 4ft (1.2m) drop test |
Supported OS | Supports iOS, Android and Windows |
Auto Power Down Mode | Low Power Down Mode (10 sec to 2.5 hours) Standard Power Down Mode (1 min to 160 hours) |
Included | Battery Pack, USB Cable, Belt Clip, Paper Roll, Quick Start Guide |
Warranty | 1 Year Limited Manufacturer Warranty |
Options |
USB Power Adapter (5V)
Extend-A-Star Extended Warranty Program (US, Canada and Mexico)
Swap-A-Star Extended Warranty Program (US and Canada)
|
