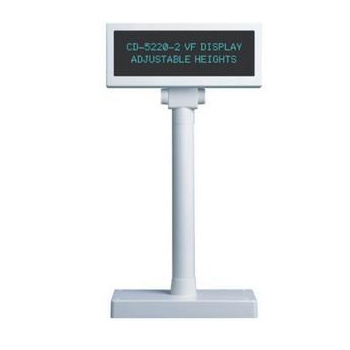

The CD-5220 customer pole display uses a vacuum fluorescent display (VFD) tube presenting bright and easy to read characters. Because of the VFD technology, the display is viewable from a wide angle. Customers will appreciate not having to remain in a fixed viewing position to see the display.
The CD-5220 customer pole display has two pole sections giving you the choice of four different display heights. The display can be rotated up to 270 degrees. The head of the display can tilt up to 35 degrees maximum. The combination of these features gives you the flexibility to tailor the display position to your unique application. With two lines of twenty characters, the CD-5220 can display 96 alphanumeric messages with 13 partners characters.
The CD-5220 customer pole display uses an easy to connect RS-232C serial port connection with available communication speeds of 4800 or 9600 bps. The CD-5220 pass-through function allows you to connect another serial device by sharing one single serial port on the host system. The CD-5220 also offers a variety of emulation modes including Epson, Aedex, Emax and Ultimate.
| Model | CD-5220 |
| Display Method | Vacuum fluorescent |
| Display Color | Blue Green |
| Brightness | 700 cd/m2 |
| Interface | RS-232 Serial (D-Sub 9 pin) with pass through function* |
| Power Supply | 12VDC +/- 5% (5V or 24V) |
| Power Consumption | 5 Watts Maximum |
| Safety | FCC, CE, EMC Approved |
| MTBF | 25,000 hours |
| Weight | 2 lb (.9 kg) |
| Viewable Angle | 8 to 35 degrees |
| Rotation Angle | Maximum 270 degrees |
| Character Font | 5 x 7 dot matrix, comma and decimal point |
| Character Size | 9.0 mm x 5.25 mm |
| Character Pitch | 8.3 mm |
| Character Type | 96 alphanumeric, 13 partners sets and one custom |
| Number of Characters | 40 (20 columns x 2 lines) |
| Notes | * Standard Base includes a 9-Pin serial port. Small metal base would require an additional cable to provide this pass-through function |
