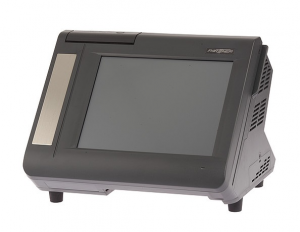

Partner Tech PT-6210-E fanless All in one Touch Terminal

Code: PT-6210-E

The All in One POS Touch Terminal PT-6210-E is the solution for small and medium size enterprises. It helps to serve customers effectively, and keep pace with competitors

Price: Call

Partner Tech PT-6210-E fanless All in one Touch Terminal

The All in One POS Touch Terminal PT-6210-E is the solution for small and medium size enterprises. It helps to serve customers effectively, and keep pace with competitors.

The compact base embedded with 80mm thermal printer, touch screen and integrated customer display, design with attractive appearance and small footprint for counter space saving, PT-6210-E can fit in with any environment installation.
It can be used as well as in retail, kiosk, fashion or in hospitality

Elegant, compact and fanless design
10.4” TFT-LCD touch screen
Open architecture
Modular design for easy maintenance
Integrated 3-track MSR
80 mm Epson thermal printer
2x20 VFD customer display

PT-6210-E
CPU	Intel Atom N270 @ 1.6GHz/512K L2 Cache
Chipset	Intel 945GSE + ICH7M
LCD	10.4” TFT-LCD; resolution: 800 x 600, 250cd/m2
Touch	5-wire resistive touch
Memory	System chips with DDR2 1GB std, support up to 2GB
LAN	10/100/1000Mbps on board ethernet controller
Storage	IDE 3.5“ HDD or optional SATA SSD
I/O ports	Eternal 4 x COM Internal 2 x COM External 5 x USB 2.0
Operation System	WEPOS / POSReady / Windows XP Pro / Windows XP embedded / Windows 7 / Linux
Power Supply	AC 100V~240V / DC12V / 15A 180 watt power adapter
Environment	Operating Storage Temperature 0~40 °C -20~60 °C Humidity 15% ~ 80% 15% ~ 80%
Dimension	328 mm (W) x 289,3 mm (D) x 246,8 mm (H)
Integrated Peripherals	3-track MSR, 2 x 20 VFD customer display, 80 mm Epson thermal printer with auto cutter and paper feed
Options	Solid State Drive, RAID, RFID module, WiFi module, Dallas-button / Addimat-lock
