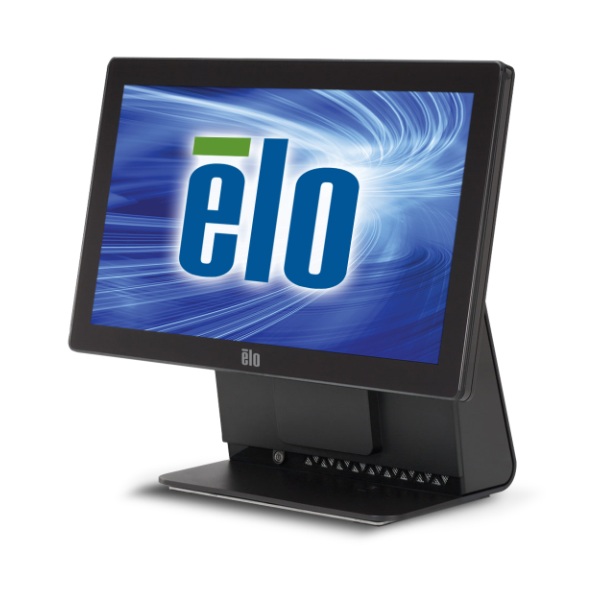

ELO 15E2 All-in-One Touch Computer

Code: 15E2

Provider: ELo

Màn Hình Cảm Ứng

The 15E2 E-Series touchcomputer is an elegant, retail-hardened touch solution with a small footprint, developed to fit into hospitality and retail environments

Price: Call

The 15E2 E-Series touchcomputer is an elegant, retail-hardened touch solution with a small footprint, developed to fit into hospitality and retail environments. The compact, ruggedized fan-less design delivers a 15-inch touchscreen, Intel Celeron dual-core processor, up to 4GM RAM and 320GB storage. Designed to fit on top of a cash drawer, it can also be wall-or pole-mounted depending on the installation needs.

The 15E2 supports third party peripherals through four (4) USB and two (2) serial ports and has a second VGA output to add a second customer-facing display for advertising and customer communication. The connections are all nicely hidden from view in the I/O bay, offering a clean, modern look while avoiding accidental disconnection.

The 15E2 touchcomputer is designed for convenient serviceability with easy access to main components. Available with IntelliTouch zero-bezel surface accoustic wave (SAW) or AccuTouch micro-bezel 5-wire resistive touch technology, the 15E2 features a sleek glass-to-edge seamless design that is elegant and easy to clean. With no moving parts to wear out, touch response is fast, accurate, and driftfree using a finger, gloved hand, or soft stylus. Pure glass construction allows high light transmission without compromising durability or functionality

Features
• Small footprint, retail-hardened, flexible touchcomputer
• Fast, accurate, and drift-free touch response using a finger, gloved hand, or soft stylus
• Customer-installable peripherals
• Quiet fan-less design

Benefits
• Zero-bezel model provides a seamless, edge-to-edge design for a sleek appearance that is easy to clean and maintain
• Pure glass touchscreen for optimal picture quality is factory sealed to resist spills, dust and grease • Durable to withstand the rigors of use in a public environment

Enclosure color	Black
Screen Size	15.6”
Processor	Intel Celeron Processor BayTrail-D J1800 2.41 GHz (up to 2.58 GHz)1MB L2 Cache; fan-less
Video	Intel HD Graphics
BIOS	AMI
Memory (RAM)	Windows Pro 7: 4GB DDR3L SODIMM on 1 of 1 slot
	Windows POSReady 7: 2GB DDR3L SODIMM on 1 of 1 slot (expandable to 4GB)1
	No Operating System: 2GB DDR3L SODIMM on 1 of 1 slot (expandable to 4GB)1
Hard Disk Drive	320GB 2.5” 7mm SATA HDD2
USB Ports	4 x USB 2.0
Serial Ports	2 x Native DB9 RS-232 (standard)
Ethernet Port	1 x LAN RJ45 (Gigabit)
Additional Video	Out 2nd VGA out
Audio Ports	1 x 3.5mm line out, 1 x 3.5mm line in, 1 x 3.5mm mic in
Operating System	Options Windows Pro 7, Windows POSReady 7, No Operating System
Display	15.6” diagonal, active matrix TFT LED LCD
Aspect Ratio	16:9 (wide)
Useful Screen Area (H x V)	AccuTouch: 13.7” x 7.8” (348.2mm x 197.5mm); IntelliTouch: 13.6” x 7.6” (344.2mm x 193.5mm)
Native (optimal)	Resolution 1366 x 768 @ 60Hz
Colors	262K (6-bit)
Brightness (typical)	200 nits
Response Time (typical)	Total: 10 msec
Viewing Angle (typical)	Horizontal: ± 45° or 90° total; Vertical: 20°/45° or 65° total
Contrast Ratio (typical)	650:01:00
On-Screen Display (OSD)	N/A (brightness adjustable using Elo diagnostic tool included)
Available Touch Technologies	AccuTouch micro-bezel 5-wire resistive; IntelliTouch zero-bezel surface acoustic wave
Power Supply External	19VDC universal-type power supply brick; AC input voltage: 100-240VAC;
Input frequency:	50-60Hz; Maximum output power: 65W (Max draw: 74W)
Maximum Power Consumption (without peripherals)	29W
Touch computer	Dimensions (max. with stand, dimensions vary with tilt and options) 15.4” x 13.0” x 6.3” (390mm x 330mm x 161mm)
Shipping Box	Dimensions (W x H x D) 18.1” x 15.8” x 9.8” (460mm x 400mm x 250mm)
Weight (with stand)	10.4lbs (4.7kg)
Shipping Weight	16.1lbs (7.3kg)
Temperature	Operating: 0°C to 35°C (32°F to 95°F); Storage: -20°C to 60°C (-4°F to 140°F)
Humidity (non-condensing)	Operating: 20% to 80%; Storage: 5% to 95%
Mounting	Options Wall mount or secure base to tabletop/desktop
Real-Time	Clock Replaceable lithium-ion battery for clock
Sealing	Touchscreen sealed to sub-bezel; Touchscreen sealed to LCD
Other Features	Serviceable internal components: Removable baseplate; Threaded holes on bottom of baseplate for mounting, Kensington security lock
Power Cables	North American and European power cables included; other regions available upon request.
Optional Peripherals	Magnetic Stripe Reader (MSR) E122229; VFD Customer Display E122426; 7-inch Rear Facing Display E791658 (AccuTouch), E807955 (no touch); Rear Facing Display Mount E122610; Wall Mount E143088; Memory Kit E273670
Warranty	3 year
MTBF	30,000 hours demonstrated
Agency Approvals	UL/cUL, FCC, TUV, CB, CE, Mexico CoC, S-mark, RCM, VCCI, CCC, KC, BSMI, UKSERTCOMPUTER, SII
