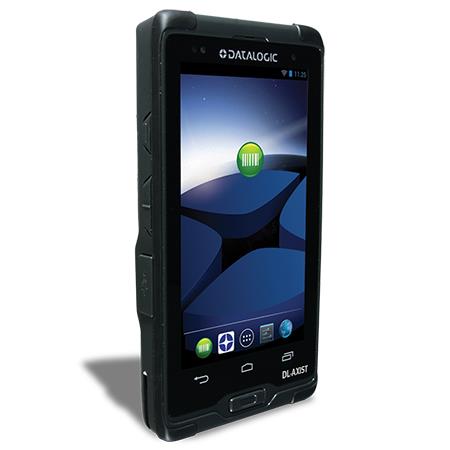

Datalogic DL-Axist Mobile Computers

Code: DL-Axist

The DL-Axist PDA is equipped with a multi-purpose 2D imager providing quick and easy data capture from high density codes at standard distances, and includes Datalogic’s patented ‘Green Spot’ technology for good-read feedback

Price: Call

The DL-Axist PDA is a rugged PDA with Android and a brilliant full touch 5 inch screen. With industrial robustness, this PDA survives most any indoor or outdoor environment. This PDA has a Corning® Gorilla Glass 3 touchscreen and scan window; the optional protective rubber boot delivers additional protection.

The DL-Axist PDA is equipped with a multi-purpose 2D imager providing quick and easy data capture from high density codes at standard distances, and includes Datalogic’s patented ‘Green Spot’ technology for good-read feedback. An autofocus camera with a built-in LED flash is standard providing easy photo capture for applications requiring image documentation.

Datalogic’s SoftSpot™ technology is included. This user-definable floating soft trigger can be positioned anywhere on the screen and programmed to execute almost any task.

FEATURES

5 inch HD multi-touch screen with Gorilla Glass 3
802.11 a/b/g/n with MIMO technology and Cisco CCX v4 certified
3G/4G cellular for voice and data communication
Bluetooth® wireless technology v4.0 with BLE for beacons
NFC for configuration and pairing
Enterprise Class Assisted GPS for location-based applications
IP67 rating and 1.8 m / 6.0 drop resistance

APPLICATIONS

Retail: Assisted Sales, Mobile POS, Stock Management
T&L: Route Accounting, Direct Store Delivery, Field Sales and Service
Hospitality/Entertainment: Ticket Verification, Table Waiting

Added	Added 05/2016
Type	Rugged Android PDA
Processor	Dual-core TI OMAP 4430
CPU Speed	1.0GHz
Burst Speed	No burst speed
CPU Thermal Design Power	Unknown
Standard/Max RAM	1GB/8GB eMMC Flash
OS	Android v4.1 (v4.4 coming soon as a free update)
Graphics	PowerVR SGX540
Disk/drive	8GB eMMC Flash, expandable via Micro-SDHC card
Expansion bay	No
Expansion slots	1 x Micro SDHC, 1 x Micro SIM
Display type	TFT with LED backlight, Corning Gorilla Glass 3
Display size/res	5-inch 720 x 1280 pixel
Digitizer/pens	Capacitive multi-touch with glove support
Keyboard/scale	Optional external
Housing	Unknown
Operating Temp	-4° to 122°F (-20° to 50°C)
Sealing	IP67
Drop	6-feet drop with rubber boot (4-feet drop w/o)
Shock	Unknown
Humidity	Unknown
Thermal shock	Unknown
Vibration	Unknown
Altitude	Unknown
Security	Unknown
Certifications	Unknown
Size (WxHxD)	6.2 x 3.1 x 0.7 inches (157 x 80 x 19 mm)
Weight	12.3 ounces (350 grams) with standard battery
Power	Removable, rechargeable 3,200mAH, 3.8V, 11.8whr Li-Ion, optional extended 6,400mAH, 3.8V, 23.6whr (ships with WWAN models)
Interface	1 x Micro-USB (USB 2.0 host and client), Ethernet via dock
Camera	Rear: 5-megapixel AF with LED flash
Scanner	2D area imager (supports 1D/2D)
Sensors	Accelerometer, gyroscope, ambient light, proximity
Wireless	Bluetooth V4.0, 802.11 a/b/g/n Cisco CCX v4 certified, uBlox A-GPS (GPS, GLONASS, Beidou), 3G/4G HSPA+, NFC
List price	inquire
