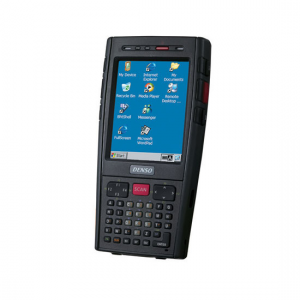

Data Collector Denso BHT-700Q-CE series

Code: BHT-700Q-CE series
Provider: Denso
Mã Vạch 2D
High performance 2D code Handy Terminal with Windows CE 5.0 and IEEE802.11a/b/g
Price: Call

High performance 2D code Handy Terminal with Windows CE 5.0 and IEEE802.11a/b/g

Scanning

New technology improves scanning performance

Excellent scanning performance

Quickly scans QR code and other 2D and 1D barcode.

Superior scanning performance



Unique image-processing technology enables scanning of obscured, faint, or damaged barcodes.

Built-in area guide mark

A laser beam illuminates the scanning area, greatly improving ease of use.

Wide range of scanning feaures



Durability



High quality, high durability, and high environmental resistance to ensure extended lifetime

Drop resistant

The magnesium alloy frame gives even our large-screen models the drop resistance demanded in transportation, logistics, and field service.

Environmental resistance

High-quality technologies give the terminals an IEC international standard IP protection level of 54.


Ease of use

Designed for ease of replacement

Battery

In addition to a high-capacity standard battery (2,200 mAh), a an extended high-capacity battery (3,800 mAh) is available as an option. The BHT-700Q-CE can operate 8 hours or more with a continuous wireless connection.

Thorough support for long-term outdoor use

In addition to high-capacity battery, we offer a lineup of in-vehicle chargers (optional), enabling field work without the concern over remaining battery charge.

Improved easy battery insertion

The battery and cover are a single unit, making changing batteries easier, quicker and more efficient.

Insert battery with a single action

Ergonomic design

  • Slim, ergonomically sound design

    Just 40 mm thick, with a shape that facilitates operation

  • Despite the PDA shape, designed especially for one-handed operation

    The scan key is placed in the center of the keyboard, making it easy to perform basis operations like a "press Scan" with one hand.

Press "Scan"

Best-in-class high-spec CPU

Fast CPU allows you to work faster

Microsoft Windows CE 5.0 installed. The CPU is a best-in-class PXA270 624 MHz. Combined with a 128 MB of RAM, this handy terminal is much faster and easier to use than other models.

Easy operation via touch screen

  • Intuitive operation by touching menu icons
  • Popup keyboard enables quick text entry using the touch screen

Communication

Built-in high-security, wide-coverage wireless

Supports IEEE802.11a/b/g

Supports IEEE802.11a/b/g despite the compact body. 802.11a avoids wireless interference, even in environments where multiple wireless devices are in use.

Wireless LAN security

In addition to a conventional WEP key, the built-in WPA/WPA2 features -- an even more reliable security technology -- prevents illicit access and snooping.



High-output wireless module expands coverage

The high-output 802.11b/g wireless module provides about 2x the communication range of conventional models (compared to Denso BHT-200Q-CE). This enables more stable connections, and helps reduce total cost of ownership (TCO) by reducing the number of access points needed.

Select the security level matching your security policy

EDGE(GSM/GPRS)

EDGE together with WLAN provide seamless connectivity outside and in-house. Mobile worker enable to tap into information in real time at any place and allow companies to deploy mobile workers to the right place effectively

Voice features

VoIP support with built-in receiver & microphone

Equipped standard with microphone and receiver needed for voice over IP (VoIP) voice calls. Work more efficiently by making calls in the shop, and checking loads in the warehouse via voice call.

Use voice commands and voice input via headset

  • Cable connection
  • Wireless connection (Bluetooth)

Warehouse and back-yard picking is more efficient using hands-free Voice Picking (voice commands/voice input . Headset communication is possible via both cable connection and wireless connection (Bluetooth).

Display

Easily view large amounts of information Built-in 3.5 QVGA color LCD

Large 3.5" screen



The large screen enables viewing of large lists of information, including shipping lists

Built-in color LCD

Intuitive, clean and clear color display
  • Display corporate logo or product images

Development tools


The BHT-700Q-CE supports various developer tools

Microsoft Visual Studio 2005

  • Microsoft Visual Basic
  • Microsoft Visual C#

Microsoft Visual Studio .Net 2003

  • Microsoft Visual Basic .Net 2003
  • Microsoft Visual C# .Net 2003

Microsoft eMbedded Visual C++4.0

(HP) Software Development Kit for Windows CE version BHT(Free)

Read Range Maximum 70 cm
Max resolution 0,125 mm và 0,25 mm (2D codes)
Operating Systems Windows CE 5.0 Professional
Display Dot-matrix colour LCD, 240 x 320 dots (QVGA)
Processor PXA270 624MHz
Ram 128 MB
Memory 128 MB
Scanner Lazer
Bar Codes EAN-13/8,UPC-A/E(with add-on),Interleaved 2 of 5, CODEBAR(NW-7),CODE39,CODE93,CODE128, GS1-128,STF,MSI,GS1 Databar ; 2D Codes: QR code, MicroQR code ,PDF417,MicroPDF417, Maxi code, DataMatrix(ECC200), EAN.UCC Composite
Keyboard 45 keys + 3 trigger keys
Communications RS232C, USB, Bluethooth Ver 2.0, WAN EDGE-GSM/GPRS
Environmental Sealing IP54 ; Drop resistance 30 times from 1.2 m
Power supply unit interfaces Litium-ion battery cartridge
