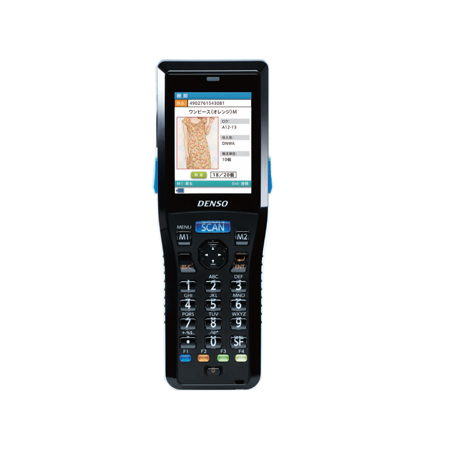

Data Collector Denso BHT-1300Q

Code: BHT-1300Q

Provider: Denso

Smooth 360° reading is realized using the latest algorithms. Compared to barcode models, working time with the model can be reduced up to 30%.

Price: Call

Problems for both field workers and managers are solved!
A Handy Terminal that makes everybody feel like using it

Compact, but easy to use

Each model's body is more than 15% thinner, lighter and smaller.
Design was sought for functional beauty that also allows comfortable operation despite size constraints.
Dome-shaped keys are used, which can be operated easily by workers wearing work gloves.

Capability to read codes from any angle of 360° makes for quick reaing.

Smooth 360° reading is realized using the latest algorithms.
Compared to barcode models, working time with the model can be reduced up to 30%.

Distinctive displays even in bright sunlight

A high visibility LCD, High-Bright Display, is used.
A wide viewing angle, and therefore, enhanced visibillity from oblique angles is realized.

Long operation possible even when the unit is kept online

Proprietary power-saving design allowing a 28-hour consesutive operation, the longest in its class.
Compliant with the latest wireless security standards to prevent illegal access.

What makes workers in field operations feel like using the model?

It can be held comfortably even by women, and its aesthetics enable it to fit in anywhere with style.
Thanks to its 360° reading capability, inventory time can be drastically cut.
What makes workers in　logistics and production field operations feel like using the model?

Round-the-clock use of the model, which is compliant with IEEE802.11 b/g/n, is possible while it is operated online.
The model's robust durability ensures accurate use in tough work environments with peace of mind.

Type			BHT-1306QWB
OS			BHT-OS
CPU			32bit　RISC microprocessor
Memory	Flash ROM(1)		64MB(45MB for user area)
Display	Number of Dots(2)		QVGA(240×320 dots)
	Display device		Liquid crystal dot matrix display (color)
	Displayable characters (3)	16-dot font	15(2-bite characters)×20 rows, 30(1-bite characters)×20 rows
	Displayable characters (3)	24-dot font	10(2-bite characters)×13 rows, 20(1-bite characters)×13 rows
	Back light		White LED
Scanner	Mode		Area sensor
	Decode	2D code	QR code, micro QR code, SQRC iQR, PDF417, micro PDF417, Maxi code, DataMatrix(ECC200), EAN.UCC Composite(GS1 DataBar Composite)
	Decode	Barcode	EAN-13/-8(JAN-13/-8), UPC-A/-E、UPC/EAN(Add-on embedded), Interleaved 2 of 5, CODABAR（NW-7）, CODE39, CODE93, CODE128, GS1-128（EAN-128）, GS1 Databar(RSS)
	Minimum resolution	2D code	0.167mm
	Minimum resolution	Barcode	0.125mm
	Reading reference position		100mm
	Maker		Area guide maker
	Scan Confirmation		LED in three colors: Blue/red/green, speaker, vibration
Key input section	Number of keys		21 keys (including power key) + Cross-hair cursor key + 3 trigger keys
Communication	Optical I/F	Communication mode	Infrared ray (IrDA Ver.1.2[low power]physical signaling layer-compliant)
		Transmission spped	Up to 115.2kbps、460.8kbps
		Communication distance	Approximately 0.15ｍ MAX.
	Wireless LAN	Suitable standard	IEEE.802.11b/g/n compliant
		Frequency	2.4GHz band
		Communication distance(4)	Approx.75m indoors, approx.200m outdoors
		Transmission speed(4)	IEEE.802.11b：11/5.5/2/1Mbps、IEEE.802.11g：54/48/36/24/18/12/9/6Mbps、 IEEE802.11n:65/58.5/52/39/26/19.5/13/6.5Mbps
		Access method	Infrastructure mode, ad-hoc mode
		Security	WEP40,128, WPA-PSK(TKIP), WPA2-PSK(AES), WPA-1x(TKIP/EAP-TLS,PEAP),WPA2-1x(AES/EAP-TLS,PEAP), 802.1x(EAP-TLS,PEAP)
	Bluetooth		Bluetooth　Ver.2.1 + EDR based class 2
	Cable I/F		USB Ver.2.0(USB microB)
Card slot			microSDHC(Up to 32GB)×1
Power	Main battery		Lithium-ion battery or 3 AAA alkaline batteries (separately sold battery adapter required)
	Operating time(5)		95 hours (with standard battery)/55 hours (with thin battery)(6)
	Operating time(5)		28 hours (with standard battery)/15 hours (with thin battery)(7)
Additional functionality			Clock, speaker,vibrator, battery, and voltage indicators, keypad backlight, remot wakeup
Environmental performance	Operating tenperature		－20℃ to 50℃(8)
	Security level		IP54
	Drop resistance(9)		10 times of dropping tests from 2.0m/1.2mheight over a concrete floor with each of 6 sides of the enclosure facing down (60 times total)
Mass			Approx. 188g (With thin battery mouted), approx.206g (with standaed batteries mounted）
