Data Collector Casio IT-600

Code: IT-600

Provider: Casio

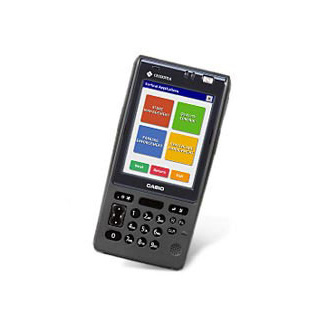

The mobile and extremely tough data terminal IT-600 was designed especially for fast data analysis and contemporary comparisons of data and sales conditions

Price: Call

The mobile and extremely tough data terminal IT-600 was designed especially for fast data analysis and contemporary comparisons of data and sales conditions. It processes information relevant to sales at the Point of Sale even faster, more simply and more efficiently - and thus makes a significant contribution to holding on to hard-fought-for market shares successfully and gaining new ones. Market research, manufacturing trades, parking supervision and hospital management can also profit from the wide range of functions and advantages of the IT-600 in addition to trade and industry.

Extremely tough and conscious of environmental aspects

Complying with class of protection IP54, the IT-600 can withstand environmental influences such as dirt and sprayed water and being dropped from a height of up to 1.20 metres extremely well - and it can even work within a temperature range from -10°C to +50°C. In addition, it fulfils the new EU-RoHS directive (Restriction of certain Hazardous Substances). Substances harmful to the environment such as lead, mercury or cadmium were not used in manufacturing the terminal.

Pioneering but with high performance

As a consequence of its ability to process relevant activities quickly, simply and efficiently, the IT-600 offers a very large bandwidth of possible applications. A high performance barcode reader is integrated in the terminal for practical data collection. These data can be transferred by wireless methods, e.g. Bluetooth™ - for example to a mobile label printer. In this way you can print warehouse labels in situ or re-label goods very simply.

Powerful and energy-saving

The extremely effective lithium ion battery and the excellent power management of the IT-600 provide the extraordinarily long operating period of up to 20 hours. Furthermore, the Autorecovery-Tool enables all the data and programs to be restored – directly from the memory of the mobile terminal, which is independent of the battery. The Mini-SD-card slot offers additional memory options.

Top technology

The IT-600 runs on the current operating system Windows CE .NET 5.0 (English version) and is equipped with Bluetooth™ technology version 1.2. Moreover, an extremely powerful laser scanner is also tucked away in this data terminal. This excels itself particularly in mobile use – thanks to its ability to be configured individually, its laser beam width control function and vibrating scan confirmation.

9,4 cm (3,7") VGA-TFT colour display

The large 9,4 cm (3,7") VGA-TFT colour display of the IT-600 provides an extremely crisp image with high contrast because of its 480 x 640 Pixels. Particularly complex graphic and web-based applications can be displayed on it brilliantly. The transflective display can be read easily in all lighting conditions, in addition, the excellent background lighting and the touch panel ensure maximum convenience.

Models with Megapixels

In the "M30C" and "M30CR" model versions, a high resolution 1.0-Megapixel camera permits the documentation of current merchandising campaigns. With the aid of freely available, optional software components, which are based on digital technology from CASIO, you can also process and transmit your images directly.

Wireless LAN

The "M30R" and "M30CR" model versions of the industrial data terminal IT-600 extend the large bandwidth of communications possibilities with a built-in Wireless-LAN module. This module enables reliable high speed communication to take place in real time – complying with the standard 802.11b (11Mbit) or 802.11g (54Mbit).

CPU	Intel®PXA270 processor (520 MHz)
OS	Microsoft® Windows® CE 5.0 (english version)
Memory
RAM	64 MB
F-ROM	128MB (approx. 60 MB user area)
Scanner
Device	Laserscanner
Resolution	0,127mm
Distance	40-300mm or. 0-200mm with optional nose cap
Readable codes	UPC-A/E, EAN/JAN, NW-7, ITF, CODE39, MSI, Industrial 2 of 5, CODE93, CODE128, IATA, EAN128, RSS14, RSS Limited, RSS Expanded
Display
Casio-Super-LCD	Transflektive 16-bit-TFT, colour touch display
Size / Pixel	9,4 cm (3,7") resolution: 480 x 640 (VGA) and 240 x 320 dots
Font size	Scalable fonts
Back light	ruggedized LED technology
Key pad
Key pad	21 keys, 3 scanner keys (left, center, right), Additional On screen keypad
Interfaces
Interfaces	Bluetooth® version 1.2 IrDA 1.3 compatibel (max. 4Mbps) USB version 1.1 (client and host)
Wireless LAN
IT-600M30	-
IT-600M30C	-
IT-600M30R	IEEE802.11b/g
IT-600M30CR	IEEE802.11b/g
Digital camera - CCD sensor
IT-600M30	-
IT-600M30C	1 mio. pixel
IT-600M30R	-
IT-600M30CR	1 mio. pixel
Power - Type - Operating period
IT-600M30	Li-Ion-battery: standard (1.850mAh) / large (3.700mAh) Standard: approx. 11 hours Large: approx. 20 hours Integrated rechargable Li-Ion battery
IT-600M30C	Li-Ion-battery: standard (1.850mAh) / large (3.700mAh) Standard: approx. 11 hours Large: approx. 20 hours Integrated rechargable Li-Ion battery
IT-600M30R	Li-Ion-battery: standard (1.850mAh) / large (3.700mAh) Standard: approx. 10 hours Large: approx. 20 hours Integrated rechargable Li-Ion battery
IT-600M30CR	Li-Ion-battery: standard (1.850mAh) / large (3.700mAh) Standard: approx. 10 hours Large: approx. 20 hours Integrated rechargable Li-Ion battery
Others
Audio	Speaker (monaural), Microphone (monaural), Headphone jack
Buzzer	Yes
Vibration	Built-in
Dimension (LxWxH)	Approx. 166 x 82 x 23 mm
Weight	Approx. 290g (with standard battery)
Environment
Drop durability	1.2 m
Dust/water splashproof	IP54
Operating temperature	-10° to +50°C
