BEETLE /iPOS Plus Advanced

Code: iPOS Plus

Cổng LAN Cổng USB Màn Hình Cảm Ứng RS232

First Presentation 2014: The BEETLE/ iPOS plus advanced by the German High Quality Producer WINCOR NIXDORF offers an All-in-One Cash System for demanding Retail applications.

Price: Call

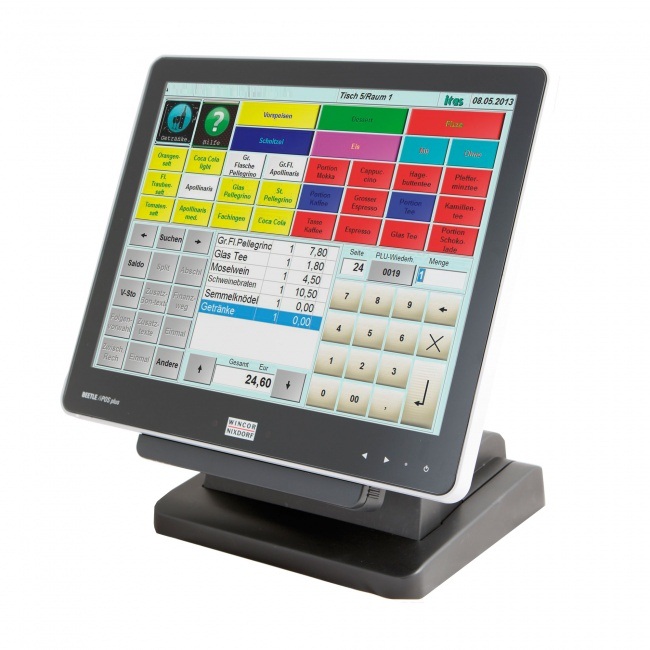

Wincor Nixdorf BEETLE /iPOS Plus Advanced

First Presentation 2014: The BEETLE/ iPOS plus advanced by the German High Quality Producer WINCOR NIXDORF offers an All-in-One Cash System for demanding Retail applications.

Attractively designed, this PC-based POS system with a frameless multi-touch surface/15“features up-to-date Intel Core I ® Technology plus multiple interfaces at minimized power use. Its premier quality shows in its high-end finish and selected components, security with a 2nd hard disk and long-duration spare-part availability. The new price-attractive BEETLE /iPOS plus advanced represents the optimized-performance model of the fan-less iPOS plus series.

Processors	Intel Celeron G1820TE 2x 2.2 GHz
	Intel Core i3-4330TE 2x 2.4 GHz
	Intel Core i5-4570TE 2x 2.7 GHz
Main Memory	Up to 16 GB
I/O Expansion Slots	Mini PCIe
	mSATA
Display	15“ CCFL Backlight, 4:3
	Max. resolution: 1024 x 768
	Projected capacitive multi-touch
	or 5-wire resistive touch
Interfaces (with desktop I/O hub)	RS232 (standard/powered): 1/3
	USB (2.0): 2
	USB 3.0: 2
	PoweredUSB (12 V/24 V): 2/1
	Second display: DVI/Plink 2
	LAN (MBit/s): 10/100/1000
	Cash drawer: 1
	eSATA: 1
	Audio/line out: yes
Storage media	Up to 2.5” hard disk or
	Solid state drives (SSD)
Interfaces (with desktop I/O hub)	MSR
	iButton waiter lock
System management	Desktop Management Interface (DMI)
	Preboot Execution Environment (PXE)
	Wake on LAN (WoL)
	Advanced Configuration and
	Power Interface (ACPI)
	Management Agent (BEETLEINFO)
Dimensions (W x D x H in mm)	350 x 66 x 310 (including stand)
Operating systems	Windows 7
	POSReady 7
	WNLPOS (Linux)
