Barcodes Printer Zebra RZ600 | barcode printer supplier

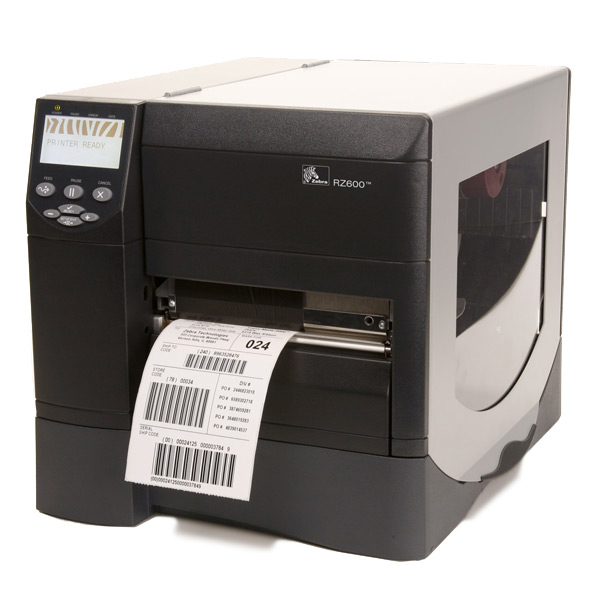

Barcode Printer Zebra RZ600

Meet all your logistics and compliance needs with an RFID printer and encoder designed to offer the fastest print speeds for item-level RFID tagging without the wait. Enhance operations with a rugged RFID encoders and printers built to help meet item-level tracking needs, and manage RFID-compliant logistical initiatives. Print and encode short-pitched smart labels for retail, supply chain, shipping, manufacturing, warehousing, healthcare and more.

The Zebra RZ600 offers companies around the globe a rugged, metal printer/encoder to help manage RFID-compliant logistical initiatives. Zebra's UHF RZ600 combines 6-inch-wide smart label printing/encoding, rugged reliability and the flexibility of many options to meet supply chain and business improvement applications in most manufacturing/warehouse and business environments. The RZ600 complies with EPC Gen 2 (ISO 18000-06C) standards and offers an enhanced range of RFID power settings to allow for support of current RFID tags - while providing support for future RFID protocols. Price-performance leadership, enhanced productivity, many connectivity choices, and multi-language font support make the easy-to-use RZ600 universally beneficial across retail, supply chain, shipping, warehousing and health care industries.

Industry

Government
Healthcare
Manufacturing
Consumer Goods
Transportation & Logistics

Used For:

Asset Management
Cross Docking
Document & Records Management
Inventory Management
Lab Sample Tracking
Receiving/Shipping
Reverse Logistics
Work-in-Process Tracking
Compliance Labeling
Dietary
Information Labels
Medical Record Labeling
Order Labeling
Photo Processing Labels
Prescription Labeling
Quality Control

Standard Features

Integrated RFID UHF reader/encoder
Delivers high-performance UHF smart labels
Ability to print/encode short-pitch smart labels (with 25mm spacing)
Thermal transfer and direct thermal operating modes (can only use one mode at a time)
Die-cast aluminum base, frame, and printhead mechanism
Metal media cover with large clear window
16 MB DRAM, 8MB Flash
RS-232C Serial Interface
High Speed, IEEE 1284, Bi-Directional Parallel Interface
USB 2.0
Transmissive and reflective media sensors
Multi-lingual backlit 240x128 pixel graphic display
Color-coded operator cues
32-bit processor
Unicode™ - Compliant
ZPL® or ZPLII® (Zebra Programming Language®)

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Memory

16 MB DRAM
8 MB Flash
64 MB Factory-Installed On-Board Flash (optional)

Print width: 6.6" (168 mm)
Print length

Length with 203 dpi: 102" (2,591 mm)
Length with 300 dpi (optional): 45" (1,143 mm)

Print speed: 203 dpi
10" (254 mm)/sec
300 dpi
8" (203 mm)/sec
Media sensors: Reflective, Transmissive

Media Characteristics

Maximum label and liner width: 7" (178 mm) - tear & cutter
6.75" (171 mm) - peel & rewind
Minimum label and liner width: 2" (51 mm) - tear & cutter, peel & rewind
Maximum label and liner length: 39" (991 mm)
Maximum roll diameter: 8" (203 mm)
Core diameter: 3" (76 mm)
Media thickness: .0023" (.058 mm) to .010" (0.25 mm)
Media types: (black-mark optional), black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notch, notch sensing, notched, perforated, roll-fed, tag, tag stock

Ribbon Characteristics

Outside diameter: 3.2" (81.3 mm)
Standard length: 1476' (450 m)
Ratio: 3:1 media roll to ribbon ratio
Ribbon width: 2" (51 mm) to 6.85" (174 mm)
Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm)

Operating Characteristics

Operating temperature TT: Operating temperature: 40° F (5° C) to 104° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 104° F (40° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20-85% non-condensing
Storage humidity: 5/85% non-condensing
Electrical: Universal auto-detectable (PFC-compliant) power supply 90-265 VAC
Agency approvals: FCC subpart B & C, IC RSS 210, IEC 60950-1, EN 300 220, EN 55022 Class B, EN55024, EN 61000-3-2, EN 61000-3-3. Product Markings: cTUVus, CE, FCC-B, ICES-003, C-Tick

Physical Characteristics

Width: 13.4" (341 mm)
Height: 13.3" (338 mm)
Depth: 18.7" (475 mm)
Weight: 34.7 lbs (16 kg)
Shipping weight: 54 lbs (24.5 kg)

Related Products

Options

300 dpi (12 dots/mm) printhead
64 MB Factory-Installed, On-Board Flash Memory (58 MB user available)
Cutter with catch tray
Value peel (front mount, passive peel option with no liner take-up)
Peel with liner take-up
Rewind, internally rewinds full label roll on three-inch core (comes with taller, non-standard printer base)
Ribbon supply spindle for ribbon ink coated inside
ZebraDesigner
ZebraDesigner Pro
ZebraDesigner for XML
ZebraNet Bridge Enterprise
Printhead conversion kits
ZebraCare Extended Warranty
European and Asian font sets
ZebraNet Wireless Plus Print Server
ZebraNet b/g Print Server

Communication and Interface Capabilities

RS-232C serial port
RS 232 to RS-422/485 serial port adaptor
RS232 DB9 to DB25 adaptor
High speed, IEEE 1284, bi-directional parallel interface
ZebraNet Wireless Plus Print Server
ZebraNet 10/100 Print Server
ZebraNet b/g Print Server

Programming Languages

Core programming languages: ZPL, ZPL I/ZPL II, ZPL II, XML

Bar Codes/Symbologies

Linear Codabar
Code 11
Code 39
Code 93
EAN-13
EAN-8
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
Code 128 with subsets A/B/C and UCC case codes
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics
