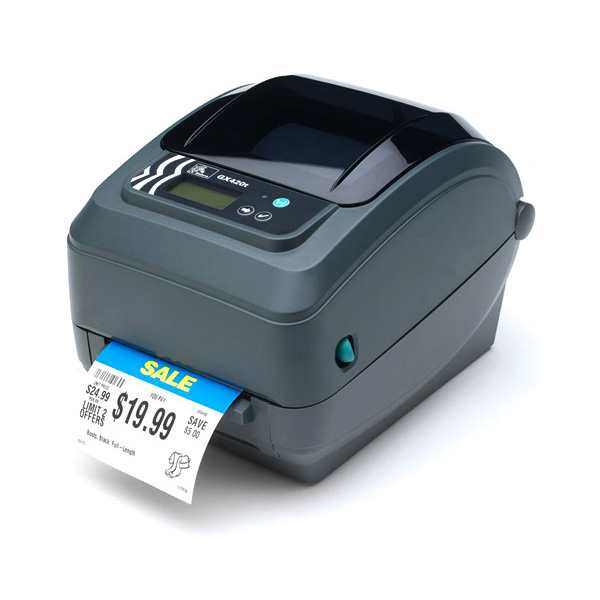

Barcode Printer Zebra GX420t

Barcode Printer Zebra GX420t

• Print speed: up to 6" (152 mm) per second
• Print method: direct thermal/thermal transfer
• EPL and ZPL programming languages standard
• OpenACCESS design for easy media loading
• Quick and easy ribbon loading system
• Dual-wall reinforced plastic construction
• 32 bit RISC processor
• XML-enabled printing

• Print speed: up to 6" (152 mm) per second
• Print method: direct thermal/thermal transfer
• EPL and ZPL programming languages standard
• OpenACCESS design for easy media loading
• Quick and easy ribbon loading system
• Dual-wall reinforced plastic construction
• 32 bit RISC processor
• XML-enabled printing

Resolution

203 dpi (8 dots/mm)

Memory

• Standard: 8 MB SDRAM (3 MB available to user); 4 MB Flash (1.5 MB available to user)
• Optional: 64 MB Flash (68 MB total) with real time clock (65.5 MB available to user)

Print width

4.09" (104 mm)

Print length

39" (991 mm)

Print speed

6" (152 mm)/sec

Media sensors

Reflective
Transmissive

Maximum label and liner width

4.25" (108 mm)

Minimum label and liner width

0.75" (19 mm)

Maximum label and liner length

0.38" (9.7 mm) to 39" (991 mm)

Maximum roll diameter

5" (127 mm)

Core diameter

0.5" (12.7), 1.0" (25.4 mm), 1.5" (37.1 mm)

Media thickness

0.003" (0.08 mm) to 0.0075" (0.20 mm)

Media types

black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock

Outside diameter

1.34" (34 mm)

Standard length

244' (74 m)

Ratio

1:1

Ribbon width

• Recommended to be at least as wide as media
• 1.33" (33.8 mm) to 4.3" (110 mm)

ID Core

0.5" (12.7 mm)

Operating temperature

TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal

Storage temperatures

-40° F (-40° C) to 140° F (60° C)

Operating humidity

10-90% non-condensing

Storage humidity

5-95% non-condensing

Electrical

Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz

Agency approvals

• FCC Part 15
• Subpart 15
• VCCI
• C-Tick
• EN55022 Class-B
• EN6100-3-2
• EN6100-3-3
• EN55024
• CCC
• CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
• TUV NRTL
• IRAM
• NOM
• AAMI

Width

7.6" (194 mm)

Height

7.5" (191 mm)

Depth

10" (254 mm)

Weight

4.6 lbs (2.1 kg)

Shipping weight

9.1 lbs (4.1 kg)

Orientation

Center

Options

• 64 MB Flash memory with real time clock (68 MB total)
• 10/100 internal Ethernet connectivity
• 802.11 b/g wireless radio connectivity with LCD display
• Bluetooth wireless connectivity with LCD display
• Adjustable media sensor
• Cutter for various media types
• Dispenser - label peel and present with present sensor
• Asian font kits

Communication and Interface Capabilities

• Auto Sensing Serial RS-232 (DB-9)
• USB V1.1, bi-directional
• Centrontics Parallel
• Optional: 10/100 internal Ethrnet (replaces Parallel port)
• Optional: 802.11 b/g wireless radio connectivity with LCD display (replaces Parellel port)
• Optional: Bluetooth wireless connectivity with LCD display (replaces Parellel port)

Core programming languages

EPL2, ZPL I/ZPL II

Linear

Codabar
Code 11
Code 128
Code 128 with subsets A/B/C
Code 39
Code 93
EAN-13
EAN-14
EAN-8 and EAN-13 with 2 or 5 digit extensions
EAN-8
German Post Code
Industrial 2-of-5
Interleaved 2-of-5
Japanese Postnet
Logmars
MSI
MSI-3
Plessey
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UCC/EAN-128
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
UPC-A and UPC-E with EAN 2 or 5 digit extensions
UPC-E

2-dimensional

Aztec
Codablock
Code 49
Data Matrix
MacroPDF417
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)

Fonts and Graphics

• 16 resident expandable ZPL II bitmap fonts
• One resident scalable ZPL font
• Five resident expandable EPL2 bitmap fonts
• Supports user-defined fonts and graphics - including customer logos
