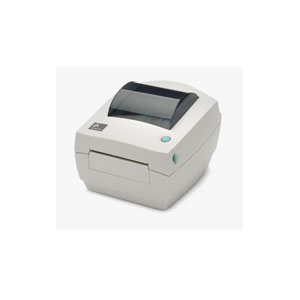

Barcode Printer Zebra GC420 Series

Code: GC420 Series
Provider: Zebra
Cổng LPT Cổng USB In Nhiệt Trực Tiếp In Truyền Nhiệt RS232
Zebra's most affordable 4" desktop direct thermal printer offers a high impact double-walled polymer casing and OpenACCESS™ design.
Price: Call
Zebra’s G-Series compact desktop printers for print widths up to 4 inches deliver best-in-class speed and performance. From the basic GK™model to the feature-rich GX™model, the G-Series printers are reliable, durable, and flexible to fit almost any low- to mid-volume printing application and budget. Built with Zebra durability and reliability, the G-Series GK model provides the best value of all basic desktop thermal printers, while the premier GX model supports a variety of industries and applications with he widest range of features.

With both EPL™and ZPL® programming languages native on all models, G-Series printers fit in perfectly with other Zebra printers. And a variety of connectivity options makes them easy to integrate into existing local or networked systems. Zebra’s G-Series printers are a smart investment, and always a perfect fit.

The GK Desktop Printer is ideal for these applications:
  • Retail: price marking, gift registry, coupon and receipt printing, Pharmacy prescription labeling
  • Healthcare: specimen labeling, patient tracking
  • Manufacturing: light-industrial work-in-process and product labeling
  • Security: visitor ID, evidence tracking, parking passes
  • Travel & Hospitality: boarding passes, bag tags, ski lift tickets

Standard Features (GC420d)

  • Print method: direct thermal
  • EPL and ZPL programming languages standard
  • 32 bit RISC processor



Standard Features (GC420t)

  • 32 bit RISC processor
  • Print method: direct thermal/thermal transfer
  • EPL and ZPL programming languages standard


More Standard Features

  • Quick and easy ribbon loading system
  • Construction: ABS double-walled casing
  • OpenACCESS™ design

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Memory: Standard: 8 MB SDRAM; 8 MB Flash
Print width: 4.09" (104 mm) maximum
Print length: 39" (991 mm) maximum
Print speed: 4" (102 mm)/sec
Media sensors: Reflective, Transmissive


Media Characteristics

Maximum label and liner width: 4.25" (108 mm)
Minimum label and liner width: 1.00" (25.4 mm)
Maximum label and liner length: 39" (991 mm)
Maximum roll diameter: 5" (127 mm)
Core diameter: 1.0" (25.4 mm) and 1.5" (38 mm)
Media thickness: 0.003" (.08 mm) to 0.007" (0.18 mm)
Media types: tag stock, Roll or fanfold


Operating Characteristics

Operating temperature

TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal

Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 10-90% non-condensing R.H.
Storage humidity: 5-95% non-condensing R.H.
Electrical: Auto-detecting (PFC compliant) 110-240 VAC, 50-60 Hz

Agency approvals

  • TUV-R NRTL
  • TUV-R CB
  • NOM
  • KCC
  • CE
  • FCC Class-B

Physical Characteristics

Width: 7.9" (201 mm)
Height: 6.7" (170 mm)
Depth: 8.2" (208 mm)
Weight: 3 lbs (1.4 kg)
Orientation: Center


Related Products

Options

  • Dispenser with label taken sensor



Communication and Interface Capabilities

  • Serial RS-232 (DB9)
  • Parallel (Centronics)
  • USB Interface

Programming Languages

Core programming languagesEPL2, ZPL I/ZPL II


Bar Codes/Symbologies

Linear bar codes: Codabar, Code 11, Code 128, Code 128 with subsets A/B/C, Code 39, Code 93, EAN-13, EAN-14, EAN-8, EAN-8 and EAN-13 with 2 or 5 digit extensions, German Post Code, Industrial 2-of-5, Interleaved 2-of-5, Japanese Postnet, Logmars, MSI, MSI-3, Plessey, Postnet, RSS (reduced space symbology), RSS-14 (limited, truncated, stacked), UCC/EAN-128, UPC and EAN 2 or 5 digit extensions, UPC-A, UPC-A and UPC-E with 2 or 5 digit extensions, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E

2-dimensional bar codes: Aztec, Codablock, Code 49, Data, Matrix, MacroPDF417, MaxiCode, MicroPDF417, PDF417, QR Code, RSS / GS1 DataBar family (12 barcodes)

Fonts and Graphics

  • 16 resident expandable ZPL II bitmap fonts
  • One resident scalable ZPL font
  • Five resident expandable EPL2 bitmap fonts
  • Supports user-defined fonts and graphics - including customer logos
